b:15
b:15
Regular price
221,00 zł
Regular price
Sale price
221,00 zł
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

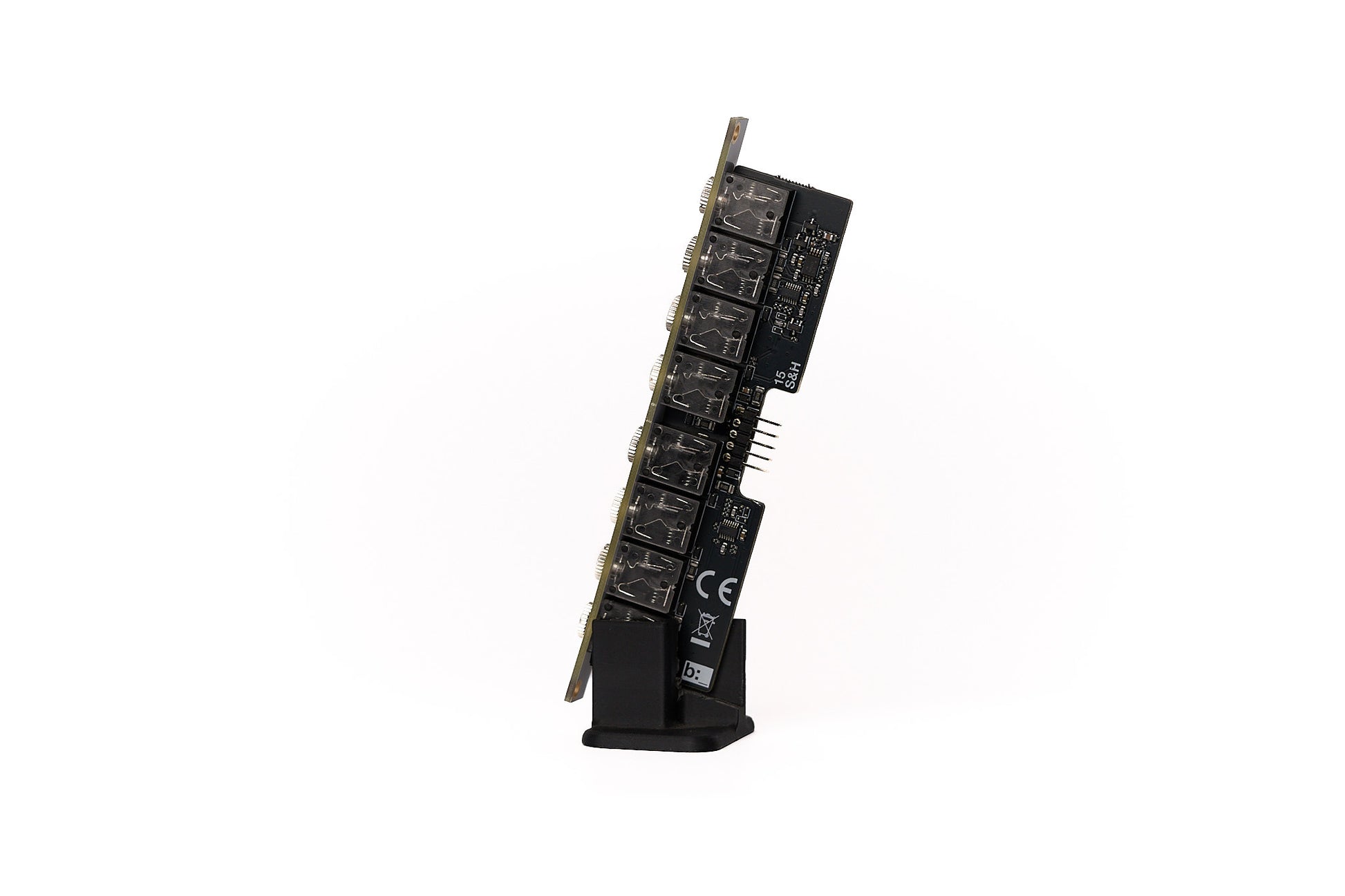

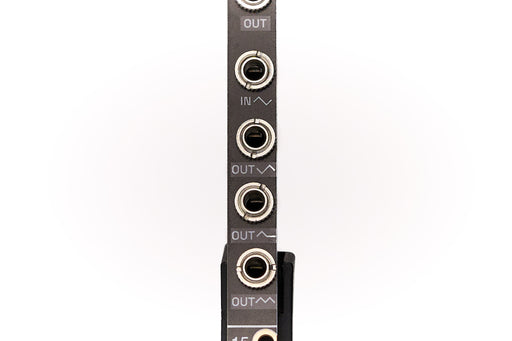

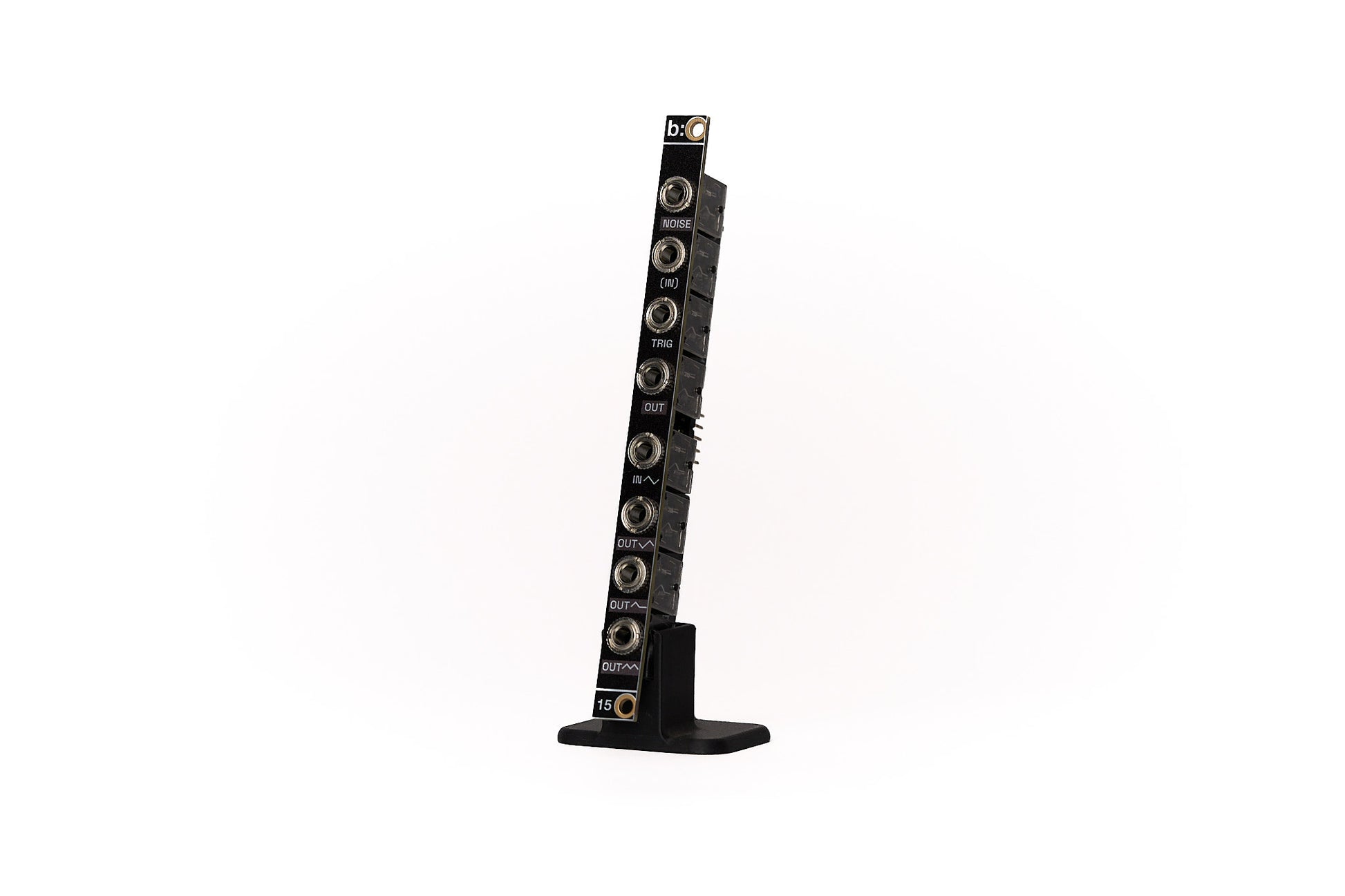

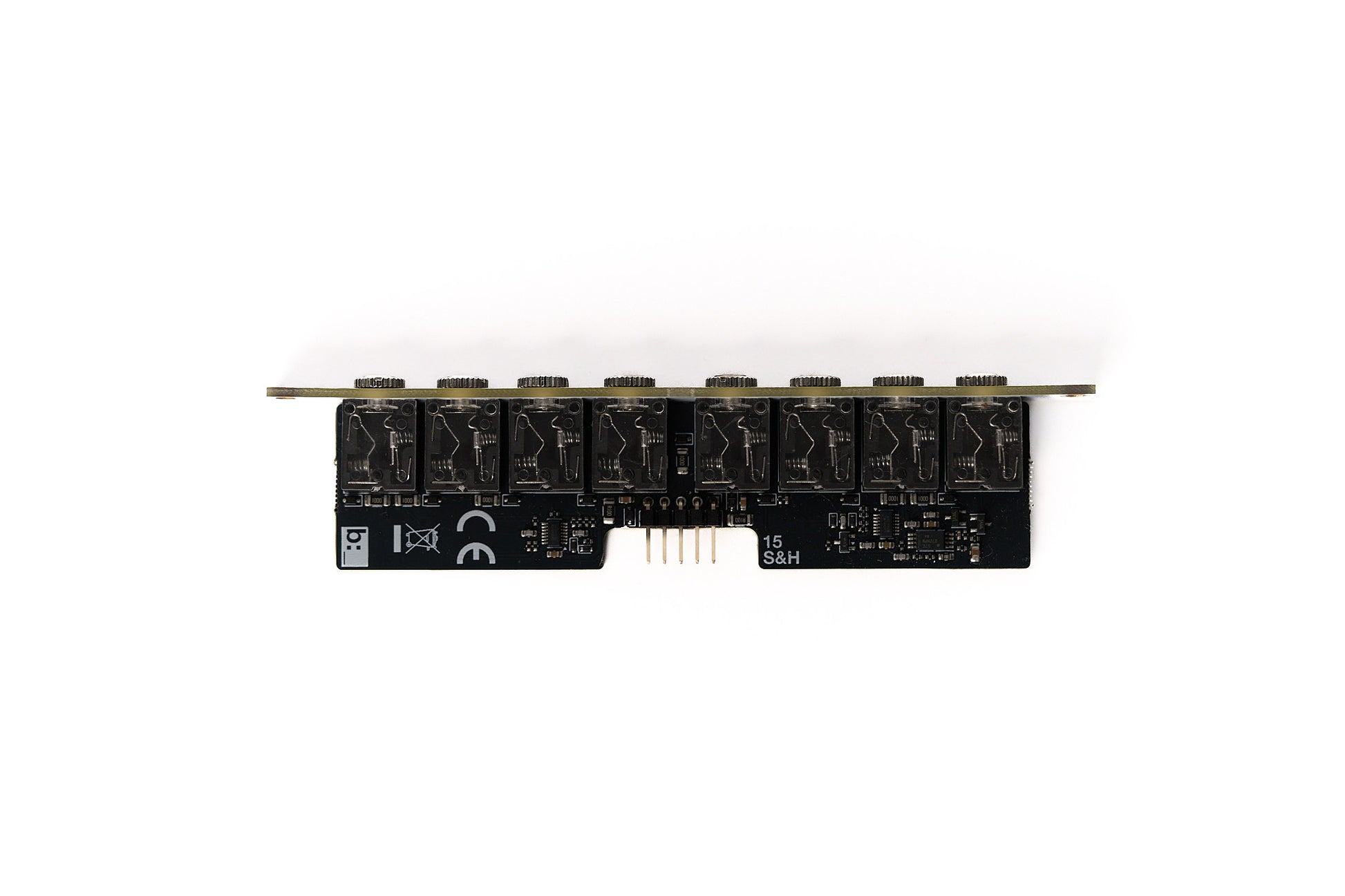

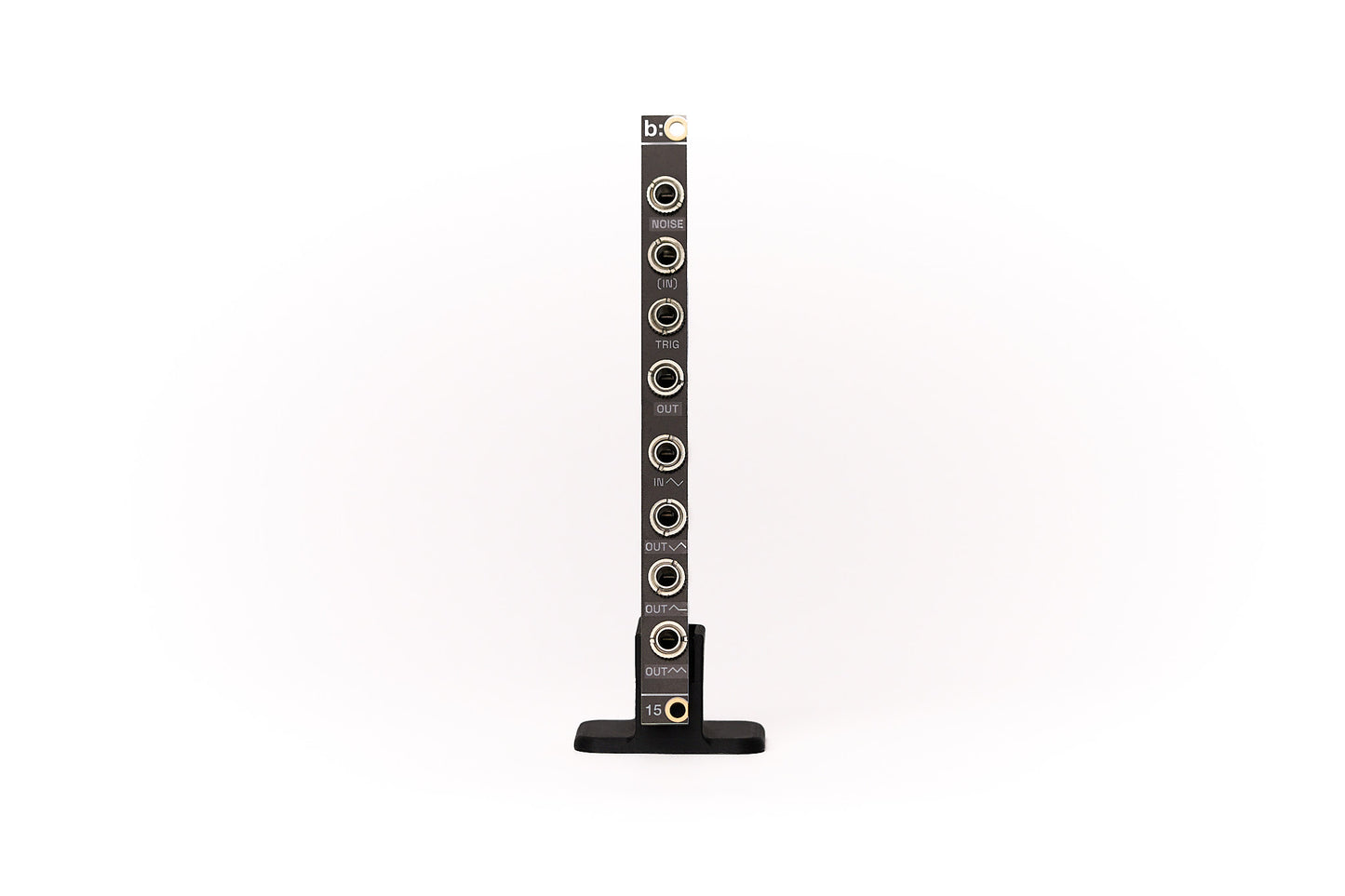

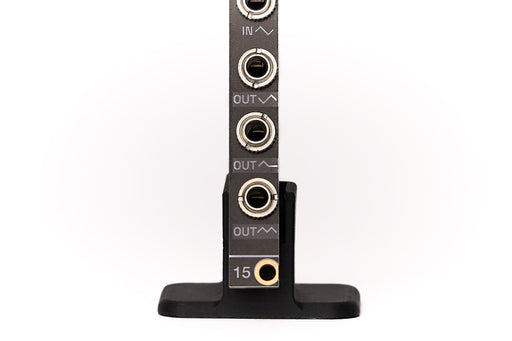

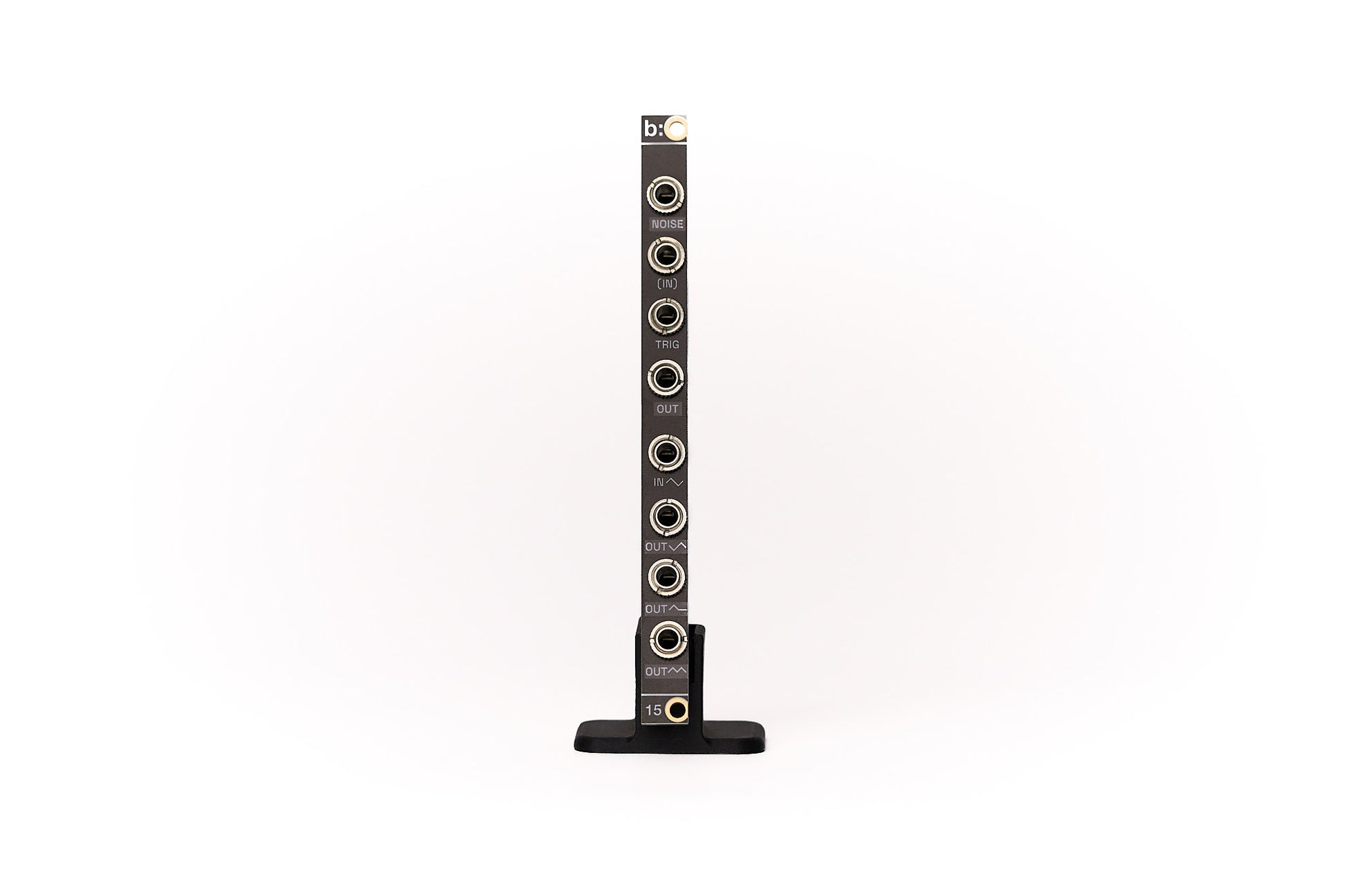

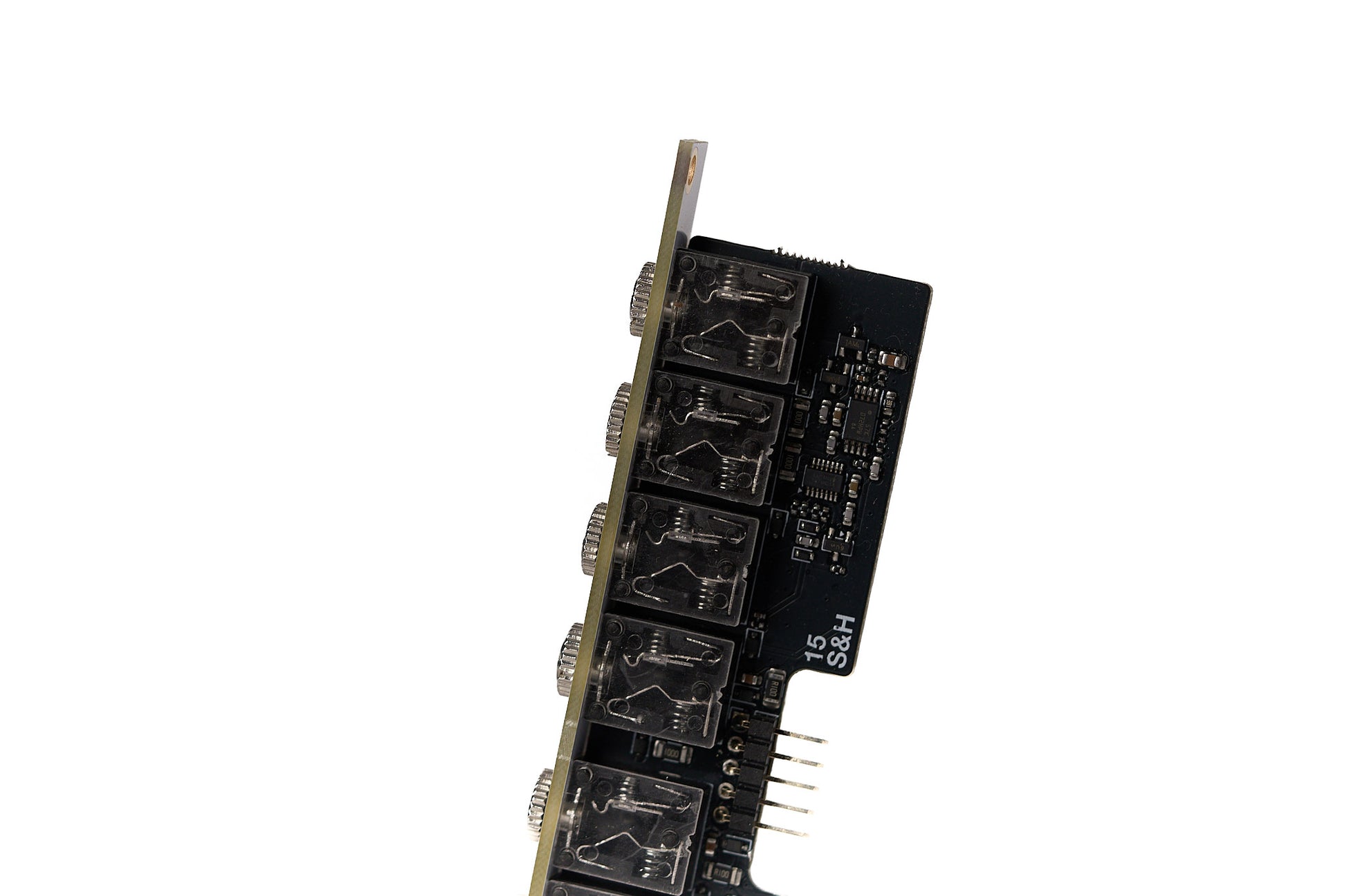

b:15 is a compact 2HP sample and hold with an integrated noise source and a three-output signal processor. The sample input is normalled to the internal transistor-based noise source, allowing the module to generate stepped random voltages with nothing more than a trigger signal. Patch an external signal to sample CV or audio, then use the additional outputs for inversion, negative signal blocking, and full-wave rectification.

Main features
Normalled noise source
With no cable inserted, the sample input is connected to the internal noise output for immediate random stepped voltages
Signal inversion
The −A output provides a polarity-inverted version of the input
Negative signal block
Passes positive voltages and holds negative input voltages at 0V
Negative signal mirror
Mirrors voltages below 0V into the positive range
Fully DC coupled
All signal paths support both audio-rate signals and control voltages without AC coupling
Compact design
At just 2HP, the module will easily find its spot in any Eurorack setup
Product specifications
Supply voltage
+/-12V
Power consumption
+12V 25mA / -12V 25mA
Horizontal pitch
2HP
Depth
27mm
Input impedance
100 ohm
Output impedance
100 ohm
