b:14

NEW!

b:14

173,00 zł
173,00 zł
Taxes included. Shipping calculated at checkout.

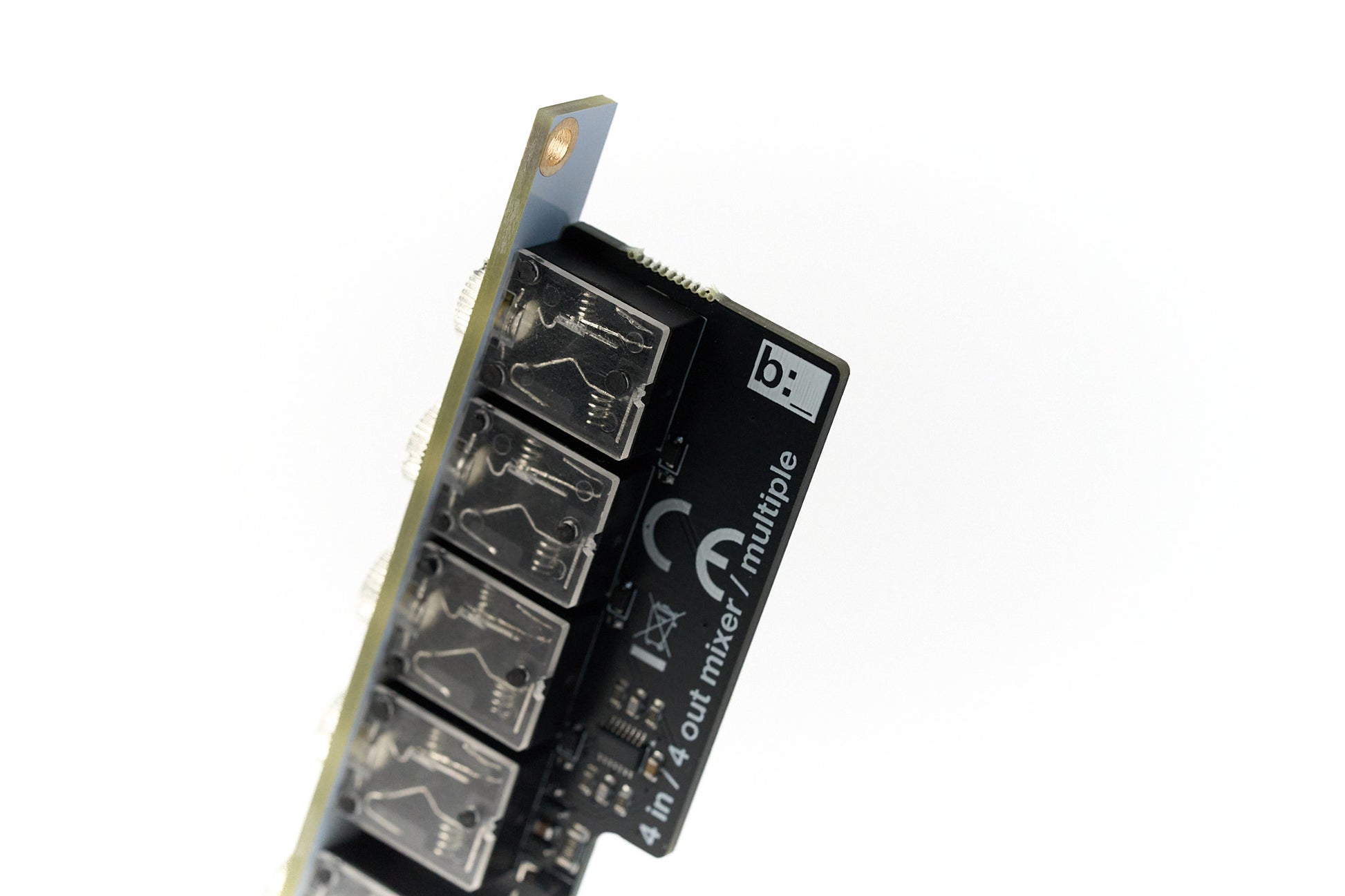

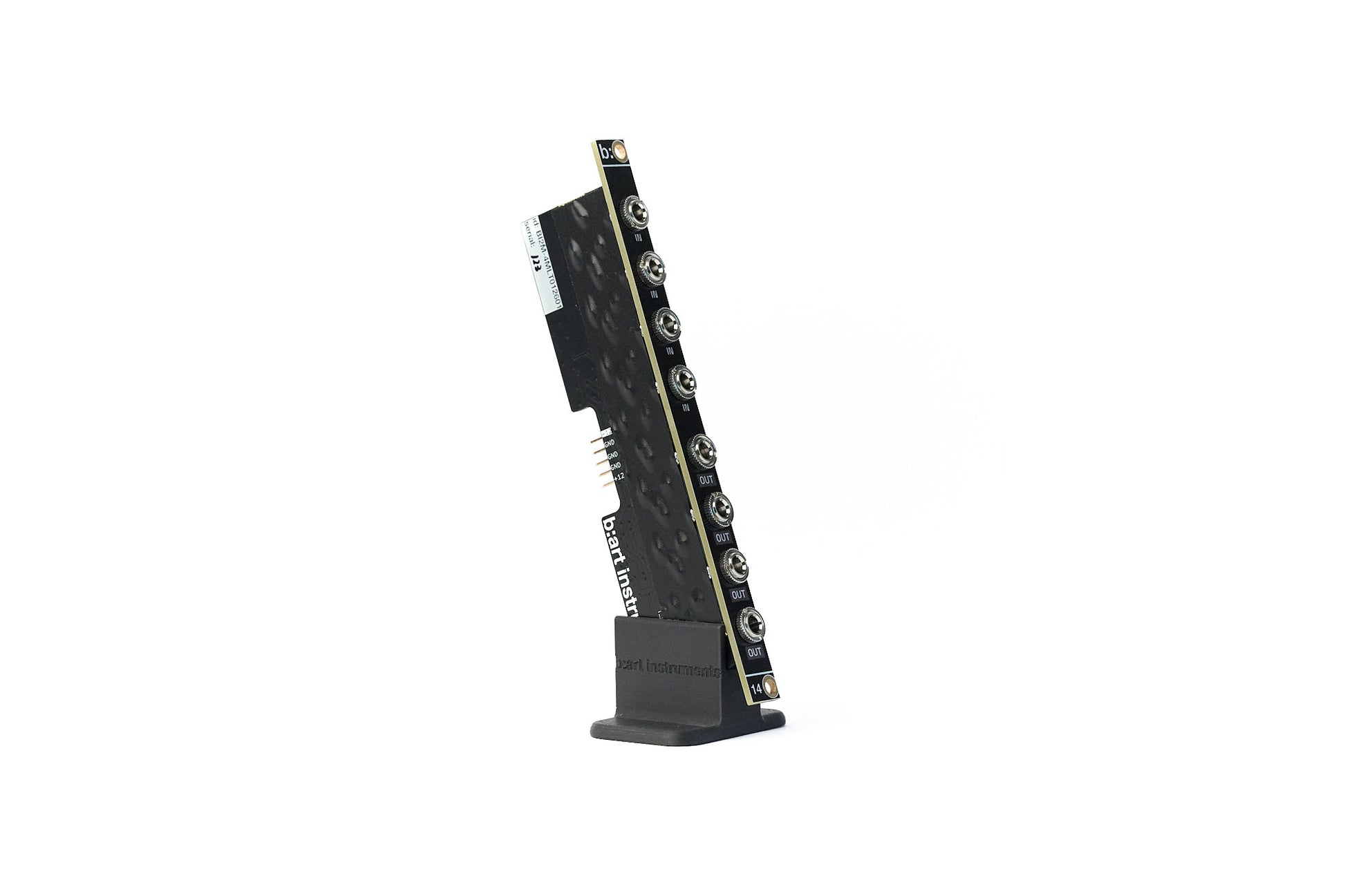

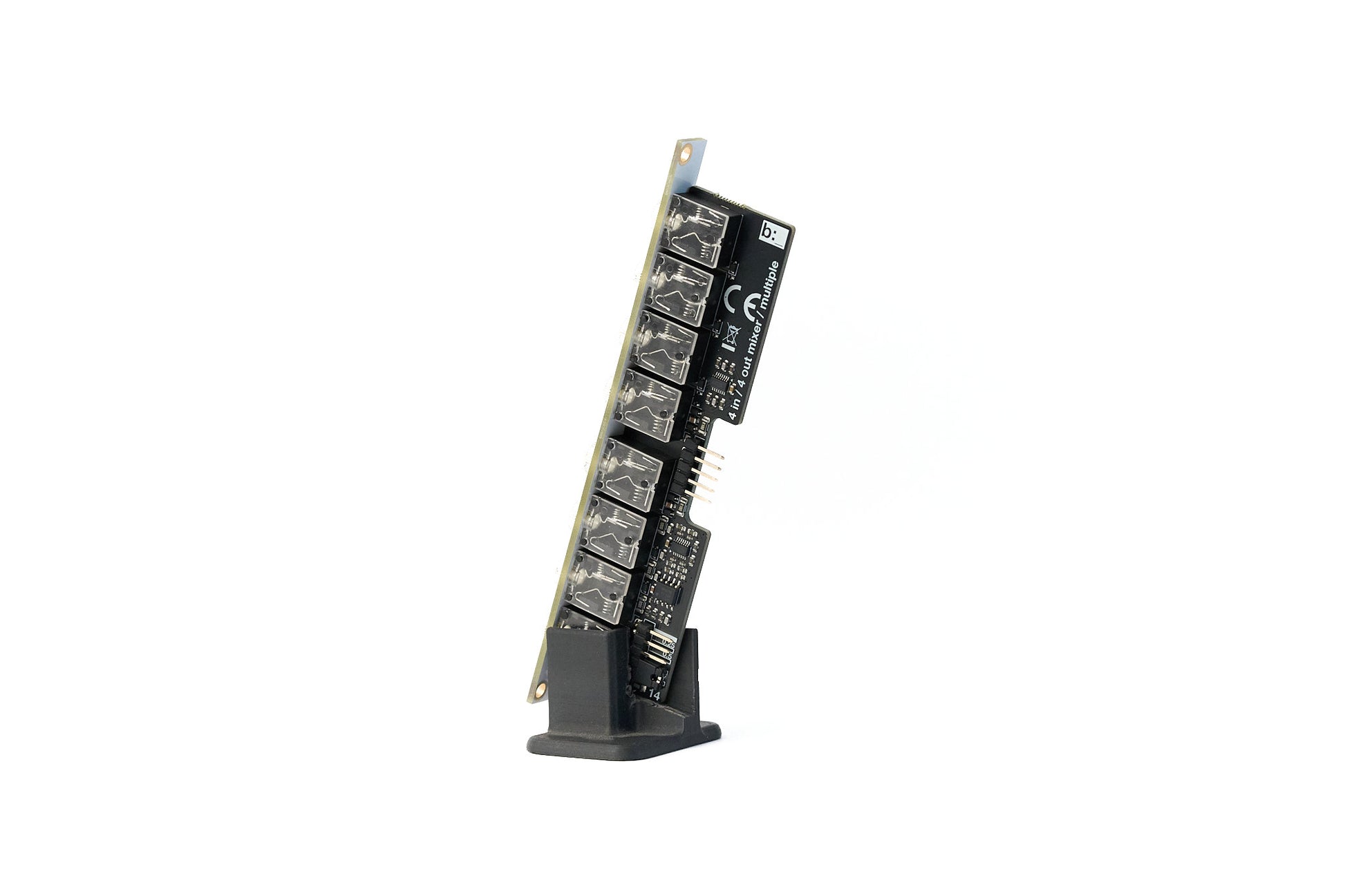

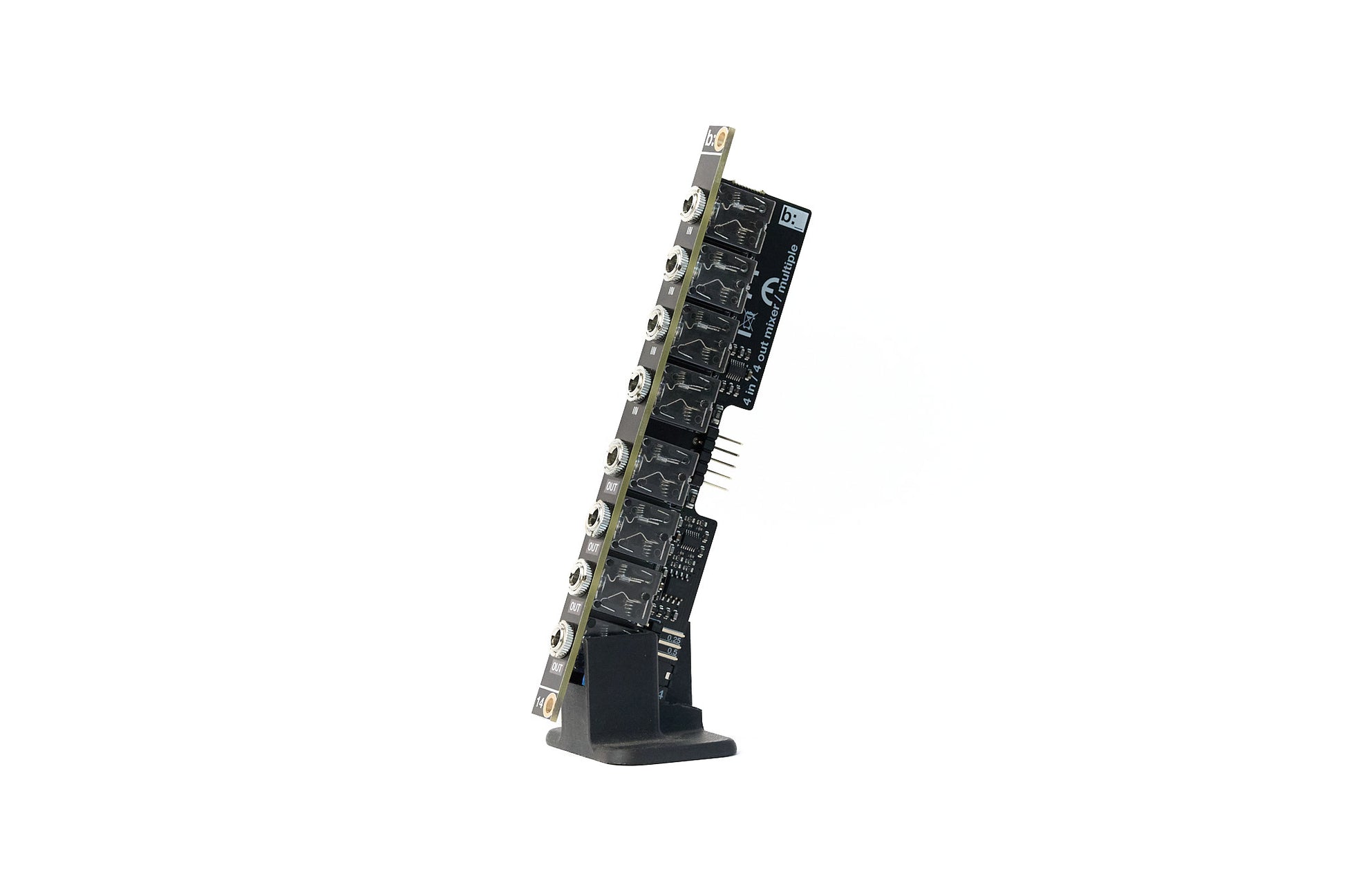

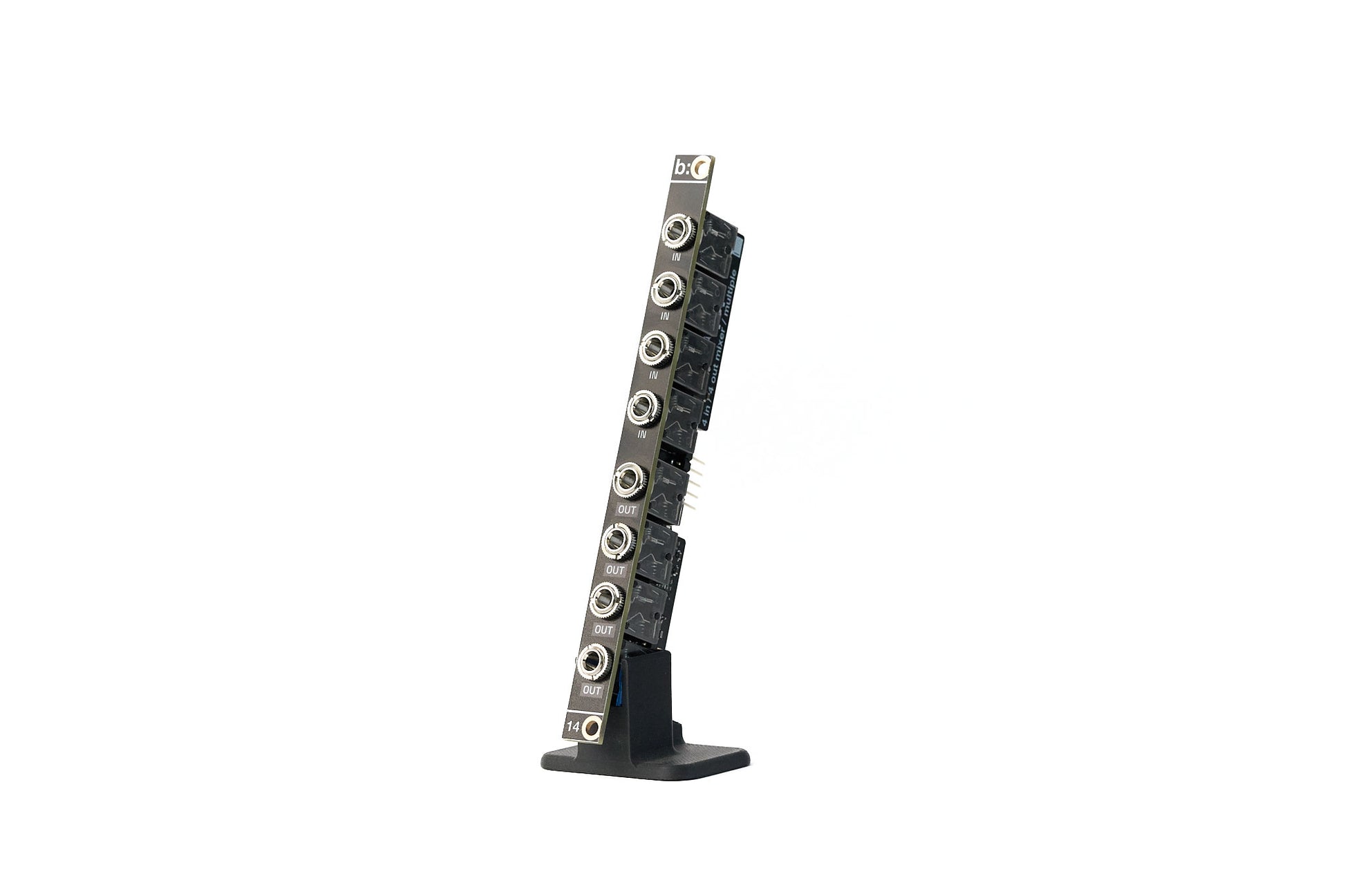

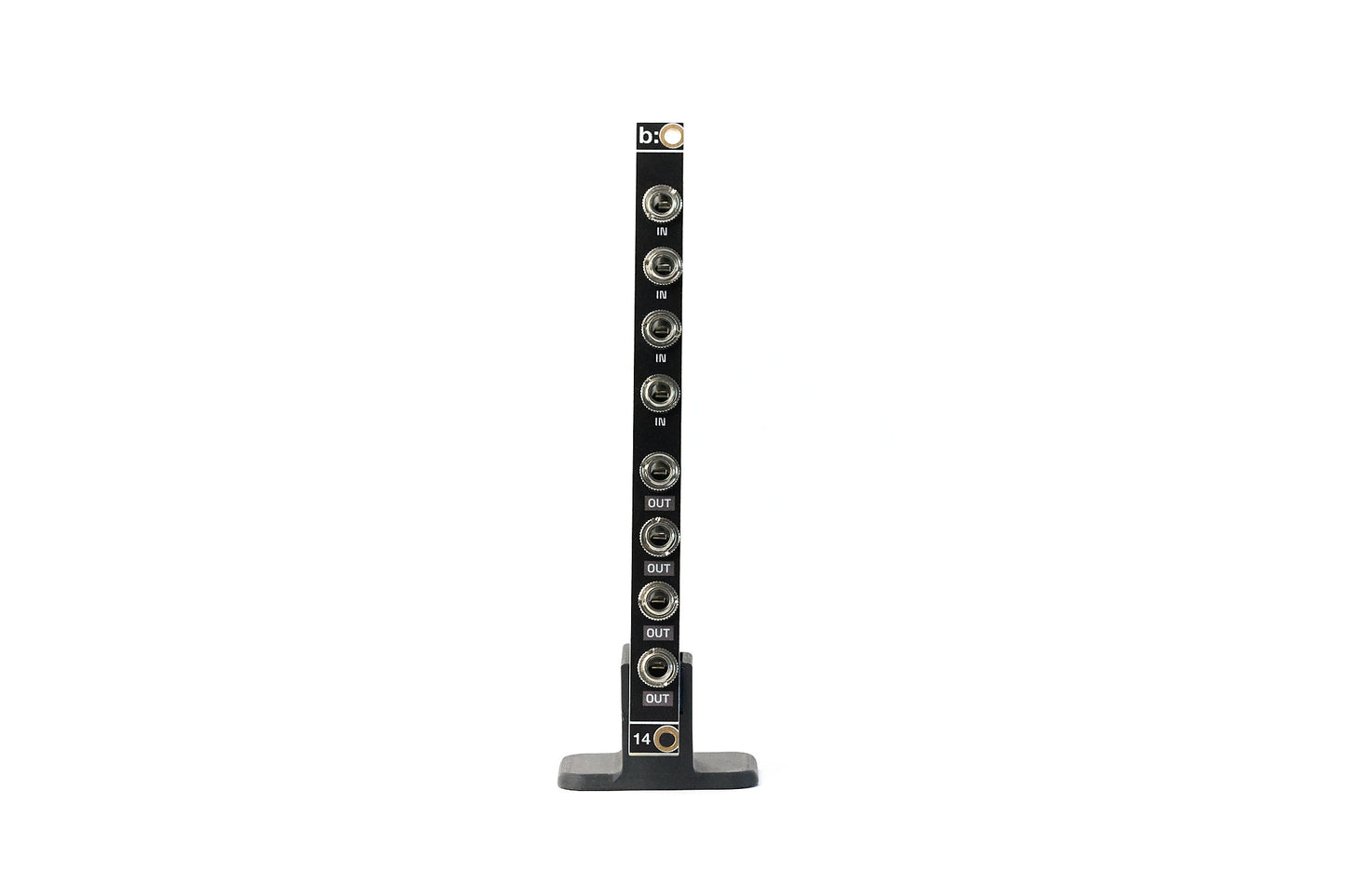

b:14 is a precision utility module that takes up to four input signals, mixes them together, and distributes the result across four identical buffered outputs. Built around the OPA1678 op-amp, it offers exceptional precision - suitable for any signals from audio to sensitive pitch CV. A rear jumper sets the mixing stage gain, making it adaptable to your specific use case.

 Get manual View full details


Main features

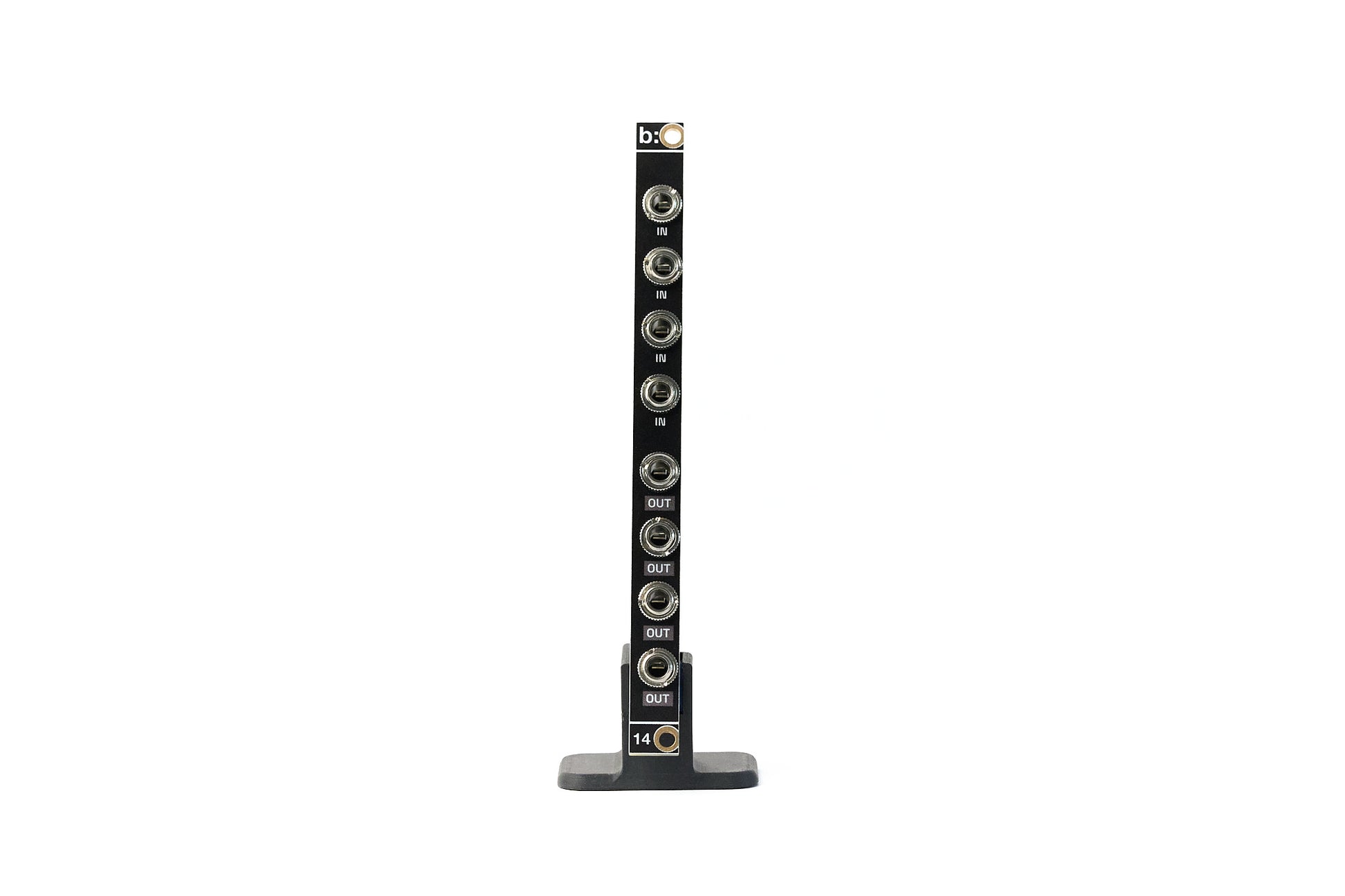

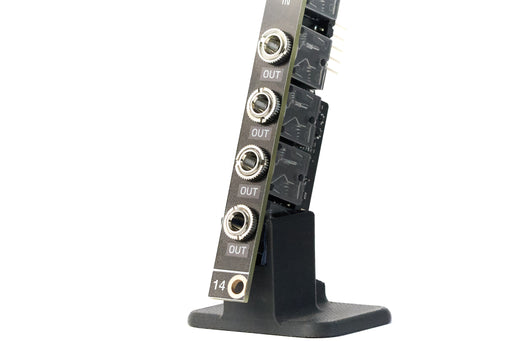

Four buffered outputs All four outputs carry the identical mixed signal, fully buffered - patch to up to four destinations without signal loading or degradation

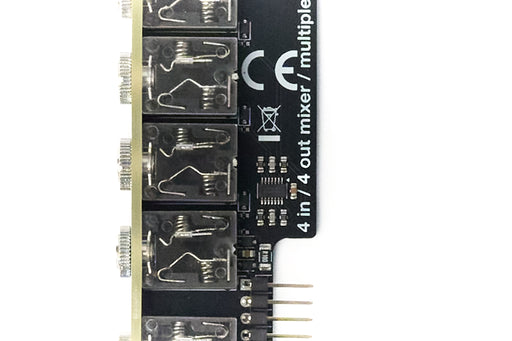

Precision mixing Built on the OPA1678, a high-performance audio op-amp with extremely low offset voltage, delivering precision well beyond 1V/oct tracking accuracy
CV and audio capable Fully DC coupled signal path handles both precision CV (pitch, modulation) and audio signals with equal accuracy
Four independent inputs Accepts up to four individual signals simultaneously, each separately buffered before the mixing stage

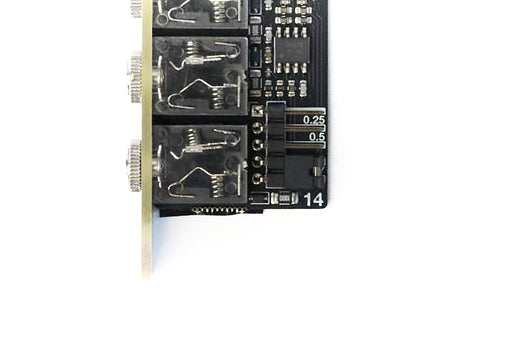

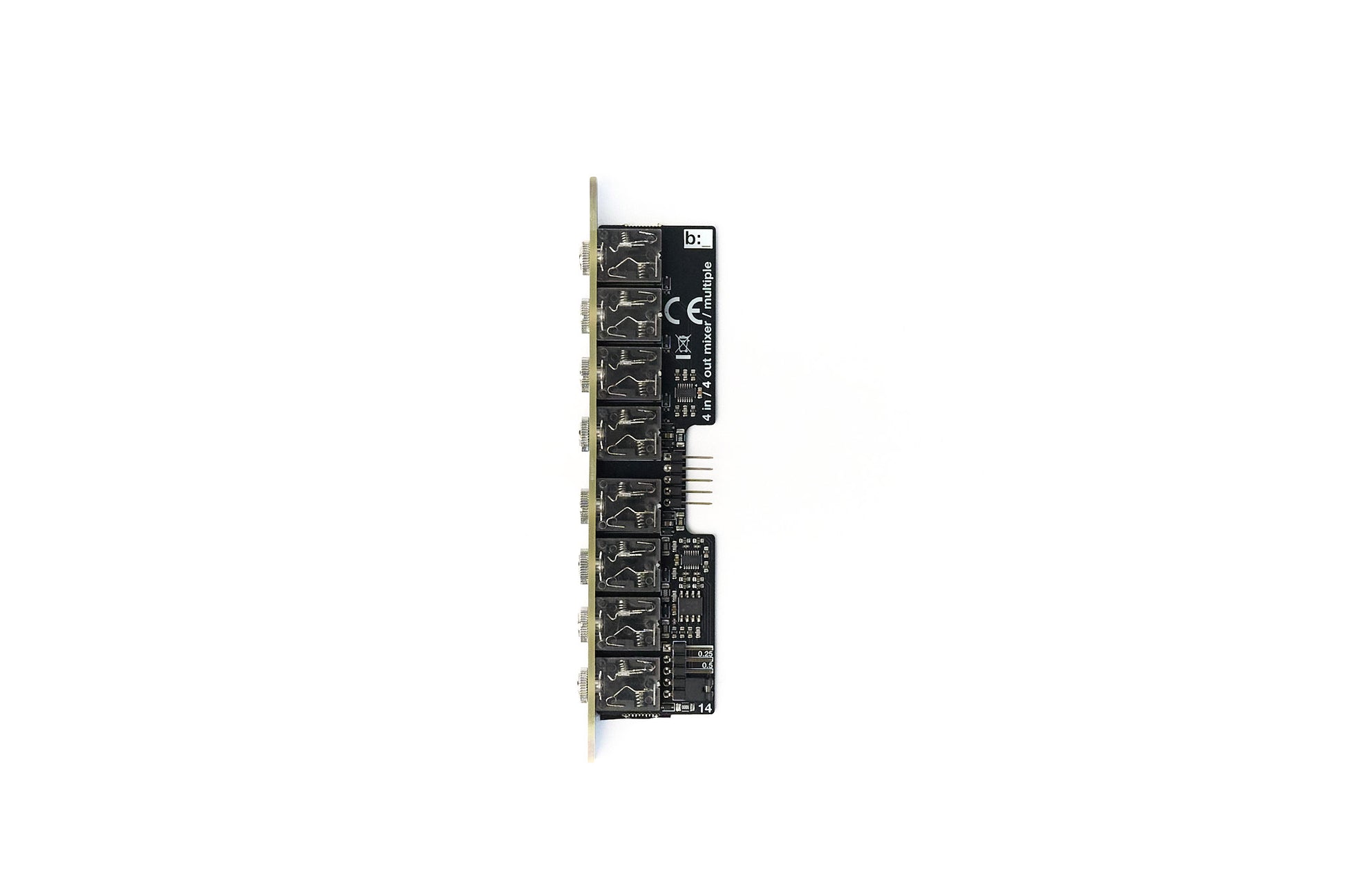

Rear gain jumper A jumper on the back panel sets the gain of the mixing stage: unity (1.0), 0.5 or 0.25
Compact design At just 2HP, the module will easily find its spot in any Eurorack setup

Product specifications

Supply voltage +/-12V
Power consumption +12V 20mA / -12V 20mA
Horizontal pitch 2HP
Depth 27mm
Input impedance 10M ohm
Output impedance 100 ohm
Selectable gain Unity (1.0), 0.5, 0.25
