b:raid

NEW!

b:raid

1.079,00 zł
1.079,00 zł
Taxes included. Shipping calculated at checkout.

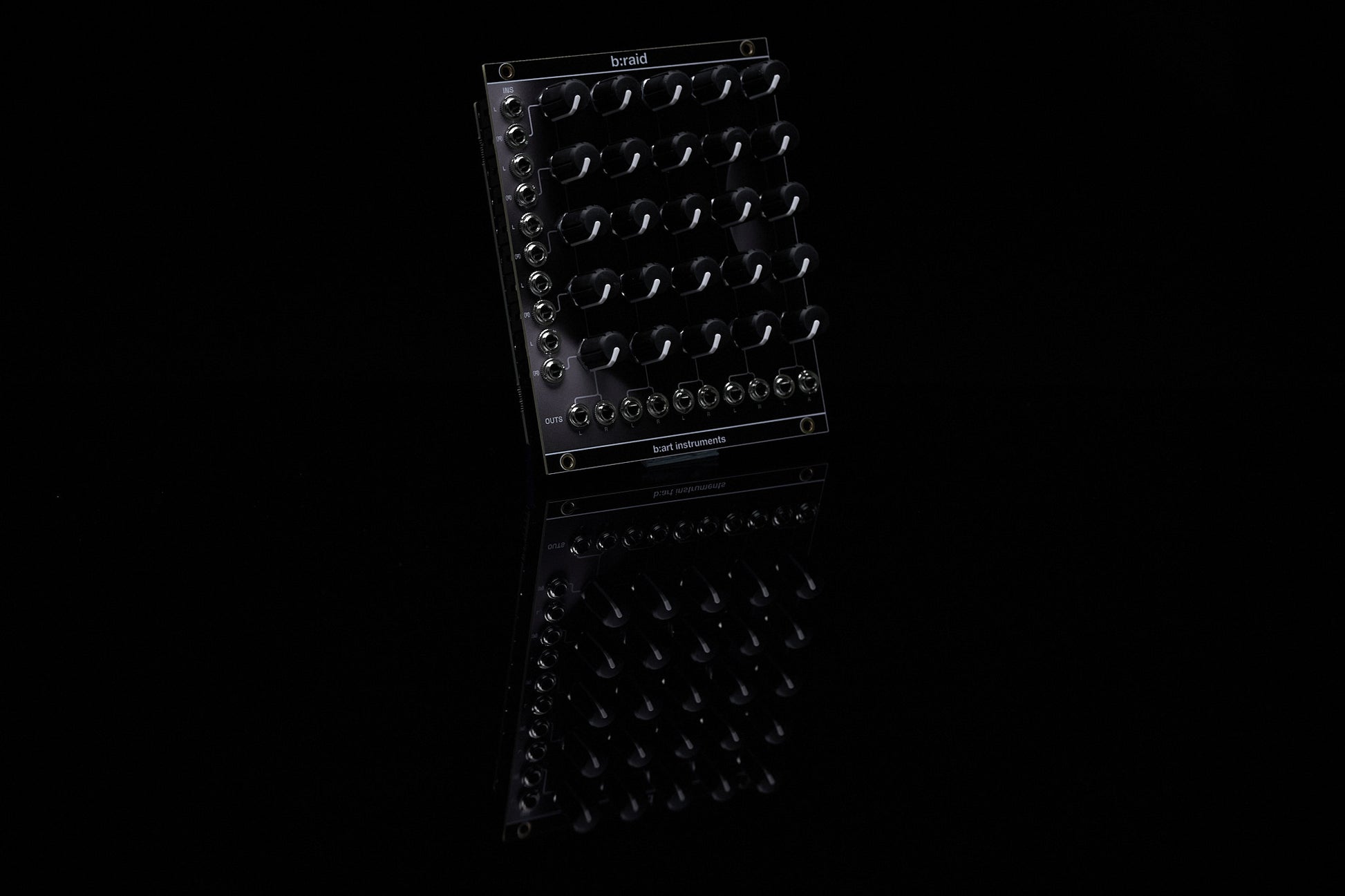

b:raid is a fully analog, infinitely expandable, high fidelity 5x5 stereo matrix mixer. It is DC coupled which allows for both audio and CV processing. Built with studio-grade components throughout, carefully crafted ergonomics, and a signature new black gradient panel to make it stand out in your rack.

 Get manual View full details


Minimum space. Maximum routing.



5x5 Stereo Matrix

Five stereo inputs freely routable to five stereo outputs with level controls

Studio-Grade Signal Path

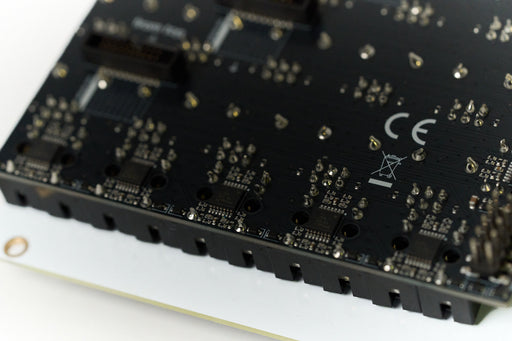

OPA167x series ICs & Vishay + Murata passives for transparent, distortion-free mixing - a perfect fit for a mastering chain & returns management

Infinitely Expandable

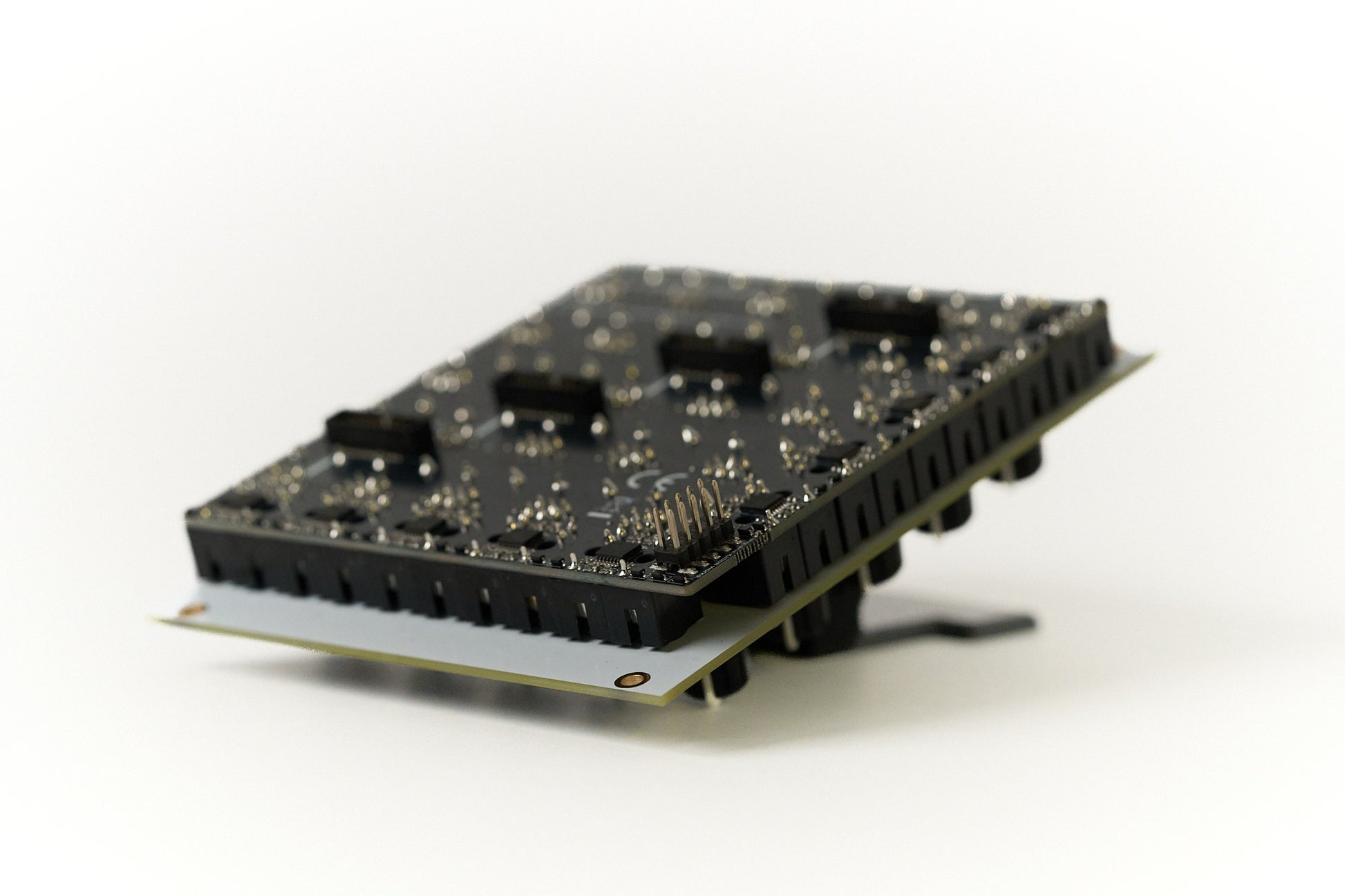

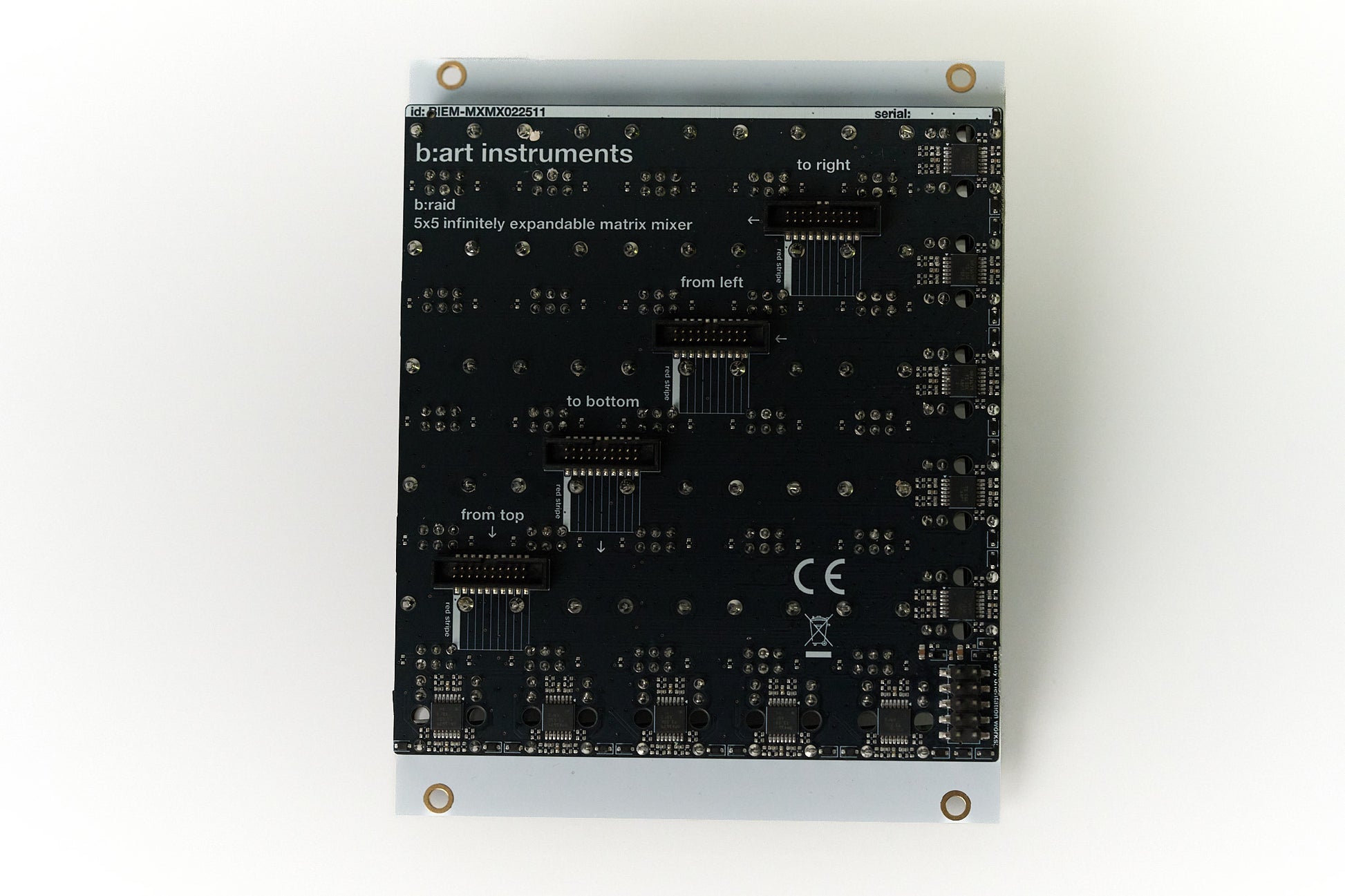

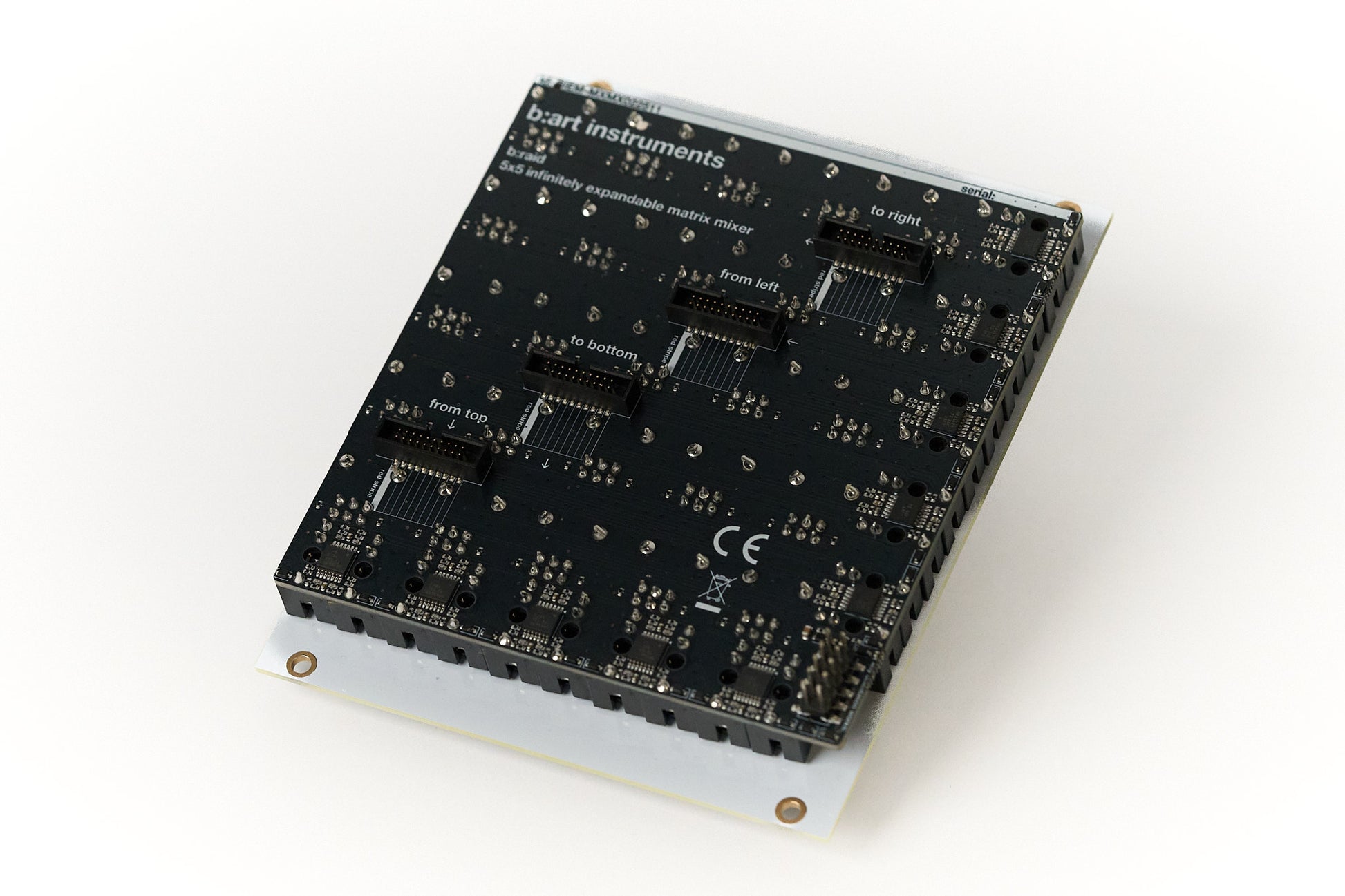

Chain two modules for a 10x5 or 5x10 matrix, four modules for 10x10 and so on - no extra cables needed

Main features

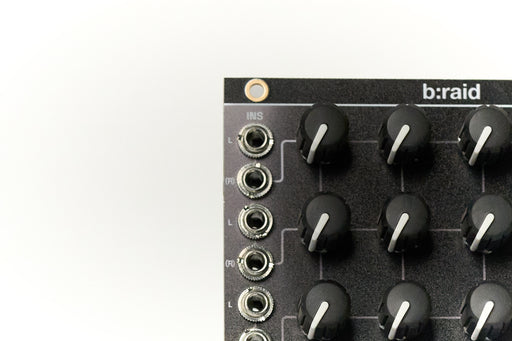

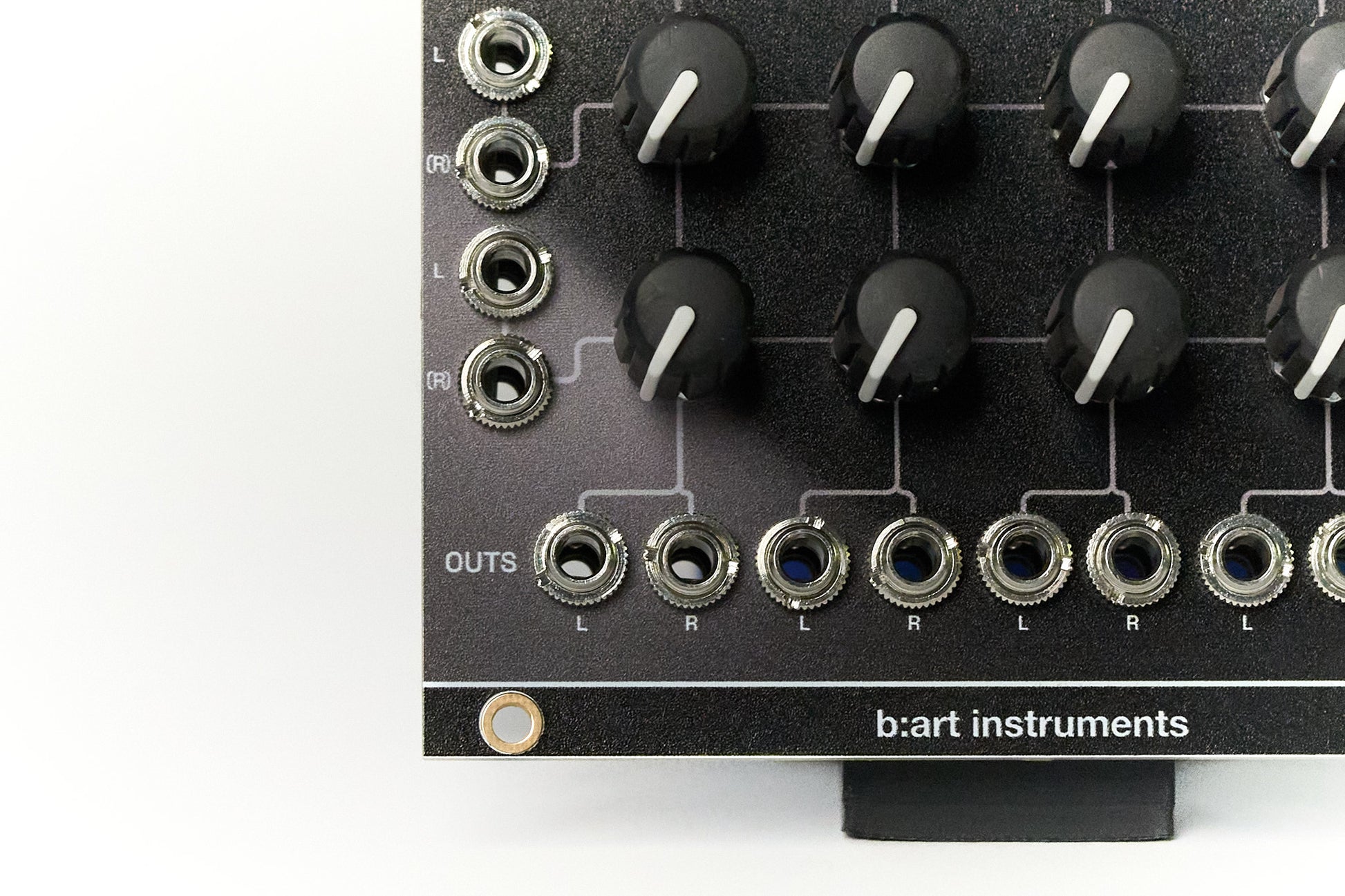

Stereo I/O on Each Channel Separate L and R jacks for routing stereo signals, or two completely separate signals in parallel
Crazy Compact A never-before seen ergonomic 5x5 mixer packed into just 20hp

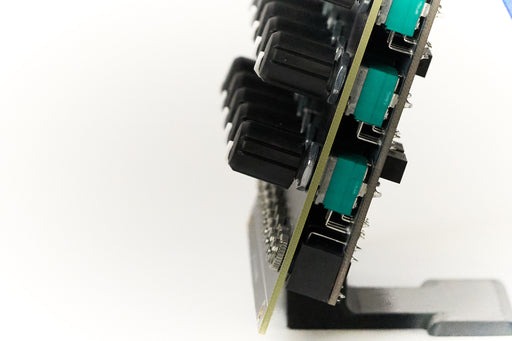

Built to Last Sturdy potentiometers and premium hard rubber knob caps for confident, precise control even in live performance situations
Ergonomic Layout Carefully spaced knobs and jacks ensure comfortable use even when fully patched

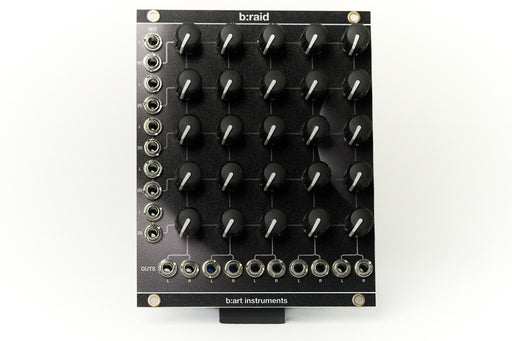

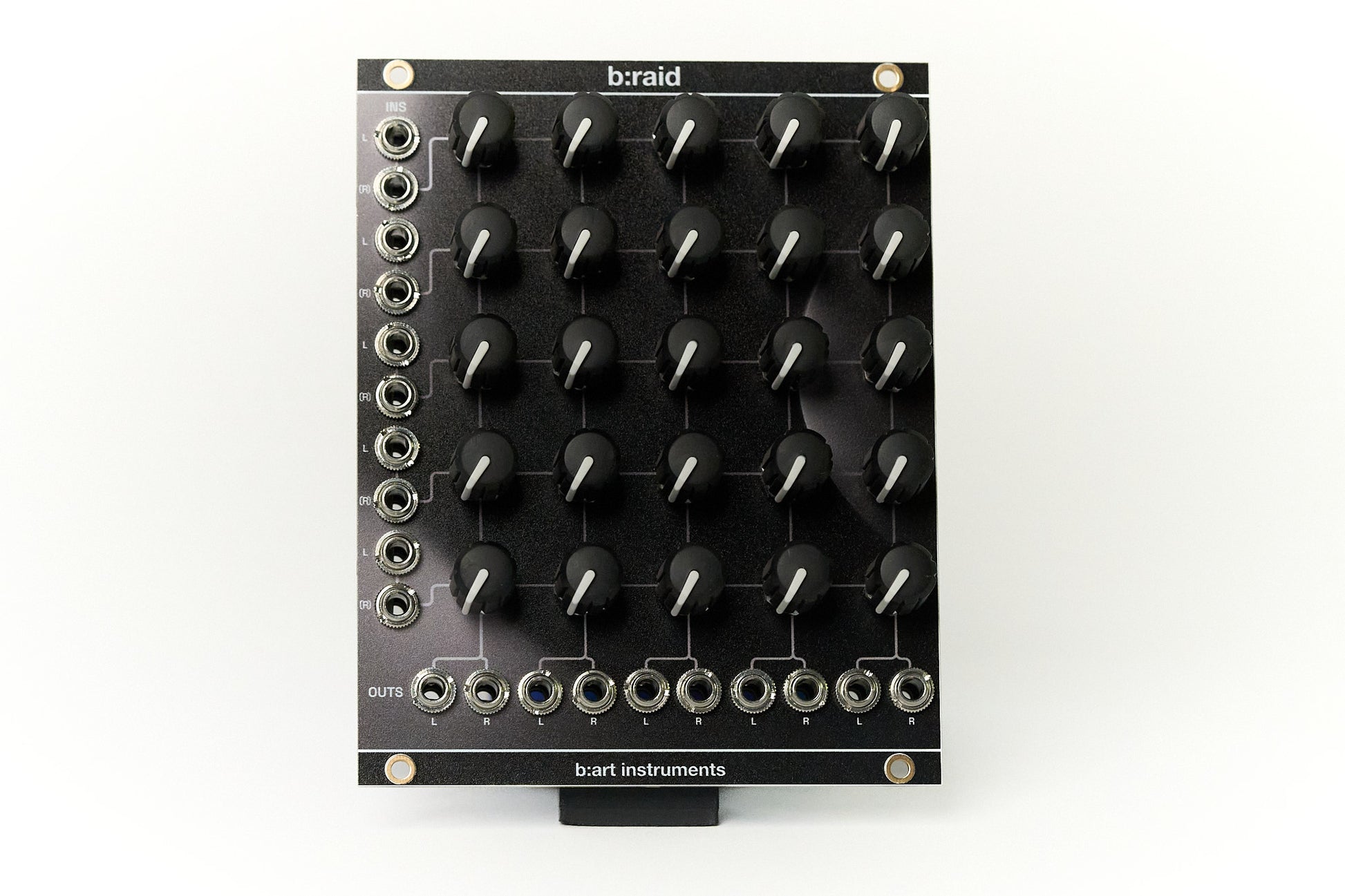

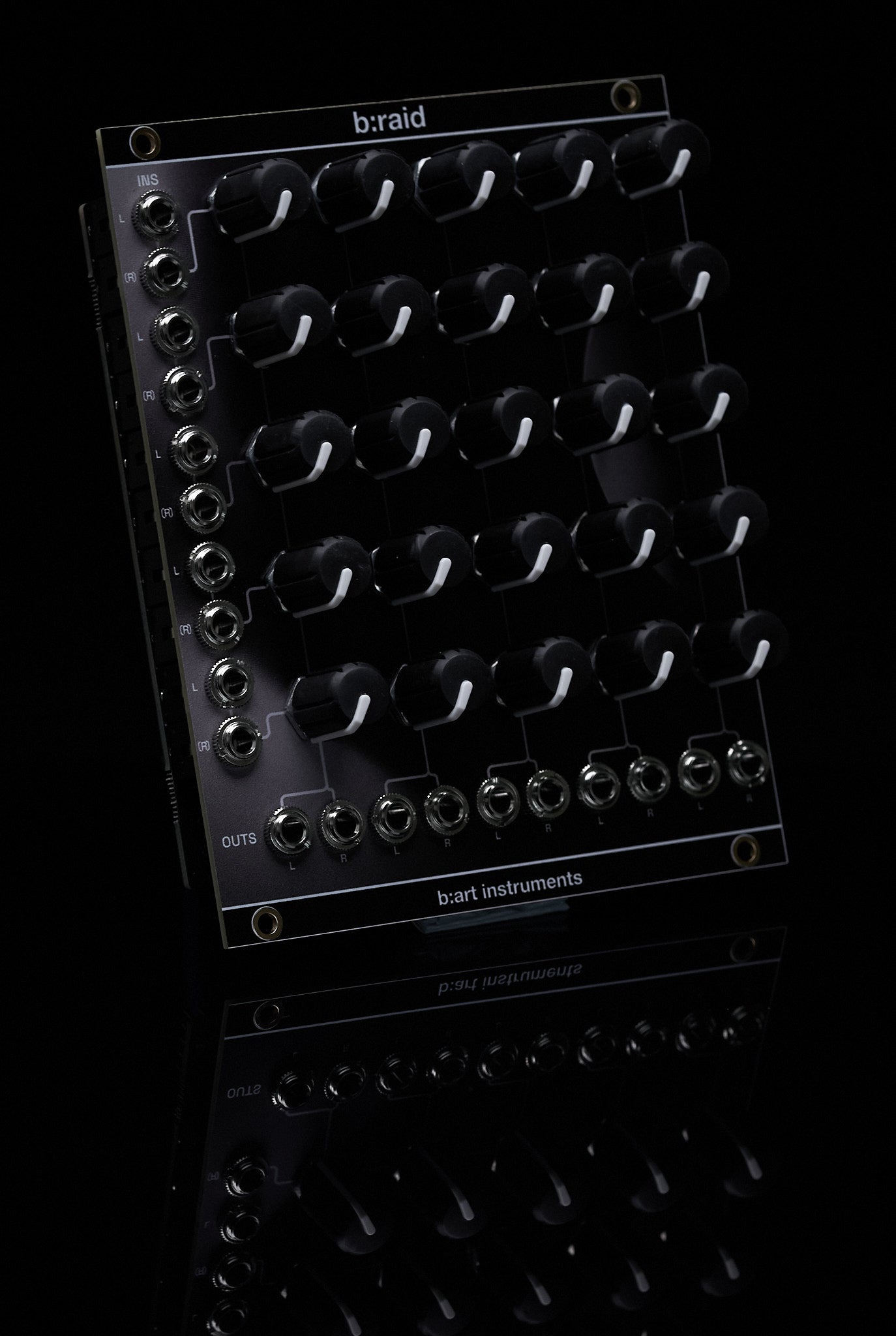

Elegant Panel Design Signature b:art black gradient panel with a clear 5x5 visual grid and in/out markings
Fully Analog No digital processing or D/A conversion in the signal path

Product specifications

Power consumption +12V 80mA / -12V 80mA
Supply voltage +/-12V
Horizontal pitch 20HP
Depth 17mm
Max audio output level 22Vp-p (-11V/+11V)
Input impedance 10kohm (all inputs)
Output impedance 1000ohm (all outputs)
