bond v2

NEW!

bond v2

1.507,00 zł
1.507,00 zł
Taxes included. Shipping calculated at checkout.

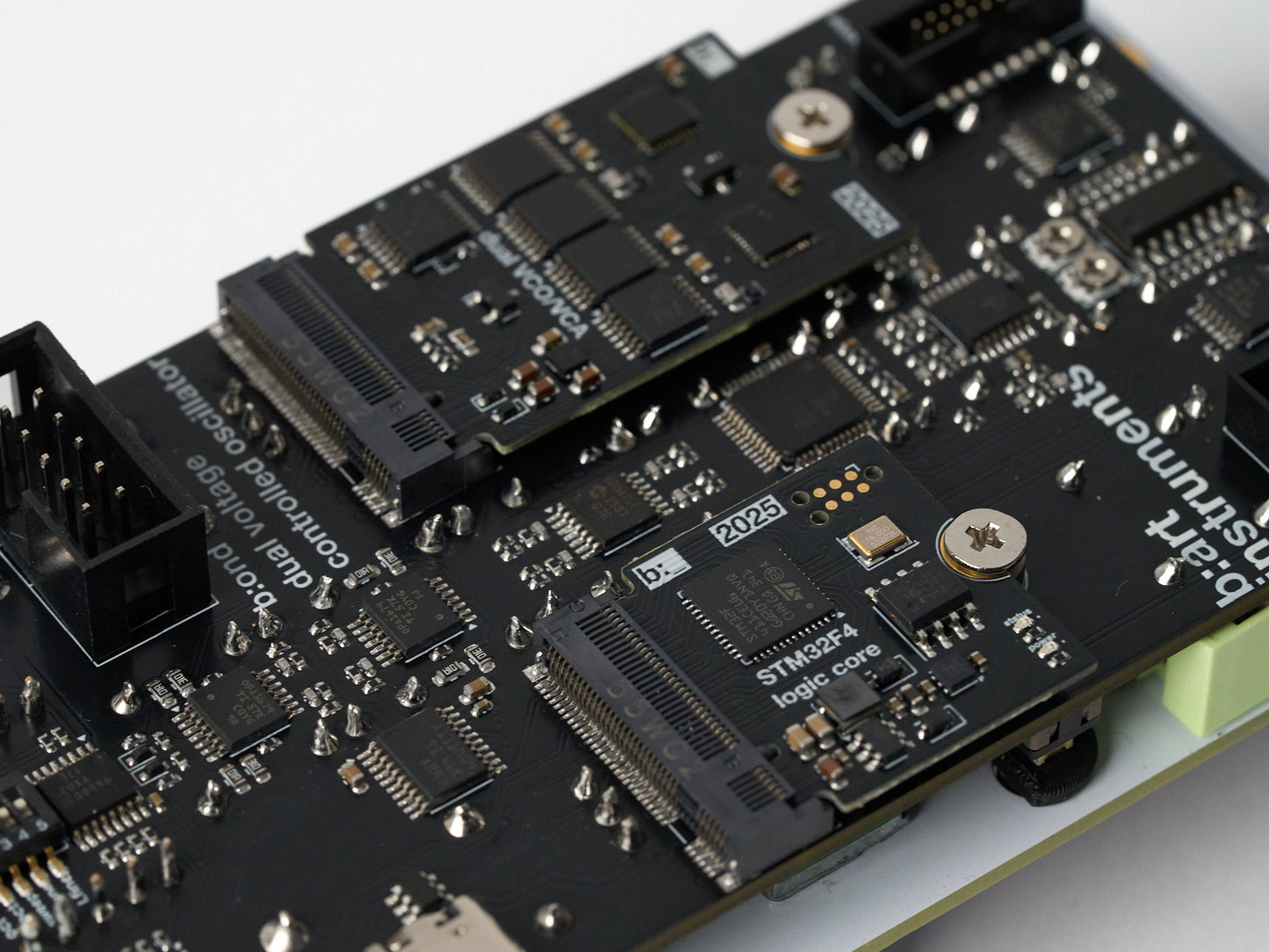

bond v2 is an updated concept of the original b:ond - keeping its analog heart and featuring an all-new digital brain. Two high-quality digitally-controlled analog oscillators with through-zero FM and PM capabilities provide rich and complex sound generation for your modular synthesizer setup. Comes with two expanders featuring VCA mixers, glide control, and three new waveform outputs.

 Get manual View full details


The last VCO you will ever need.



Analog Core

The analog nature of the module ensures warmth, richness, and a natural character that digital oscillators often struggle to replicate

Digital Precision

Digitally controlled tuning compensates temperature drift and enables precise linking and detune behaviors that are impossible on a purely analog design

Easy Configuration

Made to work out-the-box with optional custom scale quantization, remappable outputs, detune algorithms, and behavior tweaks via a dedicated desktop app coming April 2026



Glide Controls

Each expander has its own glide knob and CV input for introducing portamento to your CVs

Improved VCA Layout

Simpler VCA controls with Wave Select for quicker routing

New Wave Outputs

The expanders now feature a Ring Mod, Noise & Suboscillator outputs

Main features

Precision Tuning Dedicated Octave switch and Fine Tune knobs allow for precision tuning with less than 1 cent error
Flexible Outputs Simultaneous SINE, SAW, TRIANGLE, SQUARE, PULSE, MIX, RING MOD, SUB, and NOISE wave output options
Advanced Sync Options Selectable SOFT and HARD Sync inputs enable the creation of harmonically related waveforms and complex sounds
Pulse Width Modulation PWM knob and PWM CV input for dynamic pulse width control
Multi-Purpose Expanders Mixing VCAs, Glide control, and three additional wave outputs per expander
Performance Oriented Built for stage use with rubberized knobs, tested module layout and highly-readable font
VCO Linking A LINK switch connects the second oscillator’s octave switch and fine tune knob with the first for easy synchronized tuning adjustments

Other features

  • Accurate Waveforms – Low-noise, high-fidelity outputs ensure clear and accurate waveform reproduction
  • Make It Yours – Easy parameter remapping and feature customisation in a dedicated web app (Coming April 2026)
  • Multi-Purpose CV Input – Second CV input for each VCO can be configured as either V/OCT, octave CV or quantized to a scale

Product specifications

Power consumption +12V 118mA / -12V 84mA
Supply voltage +/-12V
Horizontal pitch 12HP + 2 * 6HP (VCA expanders)
Depth 17mm
VCA Expanders Included with the main module
Connectivity Rear USB C connector for configuration and firmware updates
Oscillator frequency tracking 1 Volt per octave
SYNC IN & MOD IN level 10Vp-p (-5V/+5V)
PWM CV input level 0 - 5V
Expander CV inputs level 0 - 5V
V/OCT CV input level -4V - 8V
Audio outputs level 10Vp-p (-5V/+5V)
Output impedance 1000ohm (all outputs)
