b:ond

NEW!

b:ond

€249,00
€249,00
Taxes included. Shipping calculated at checkout.

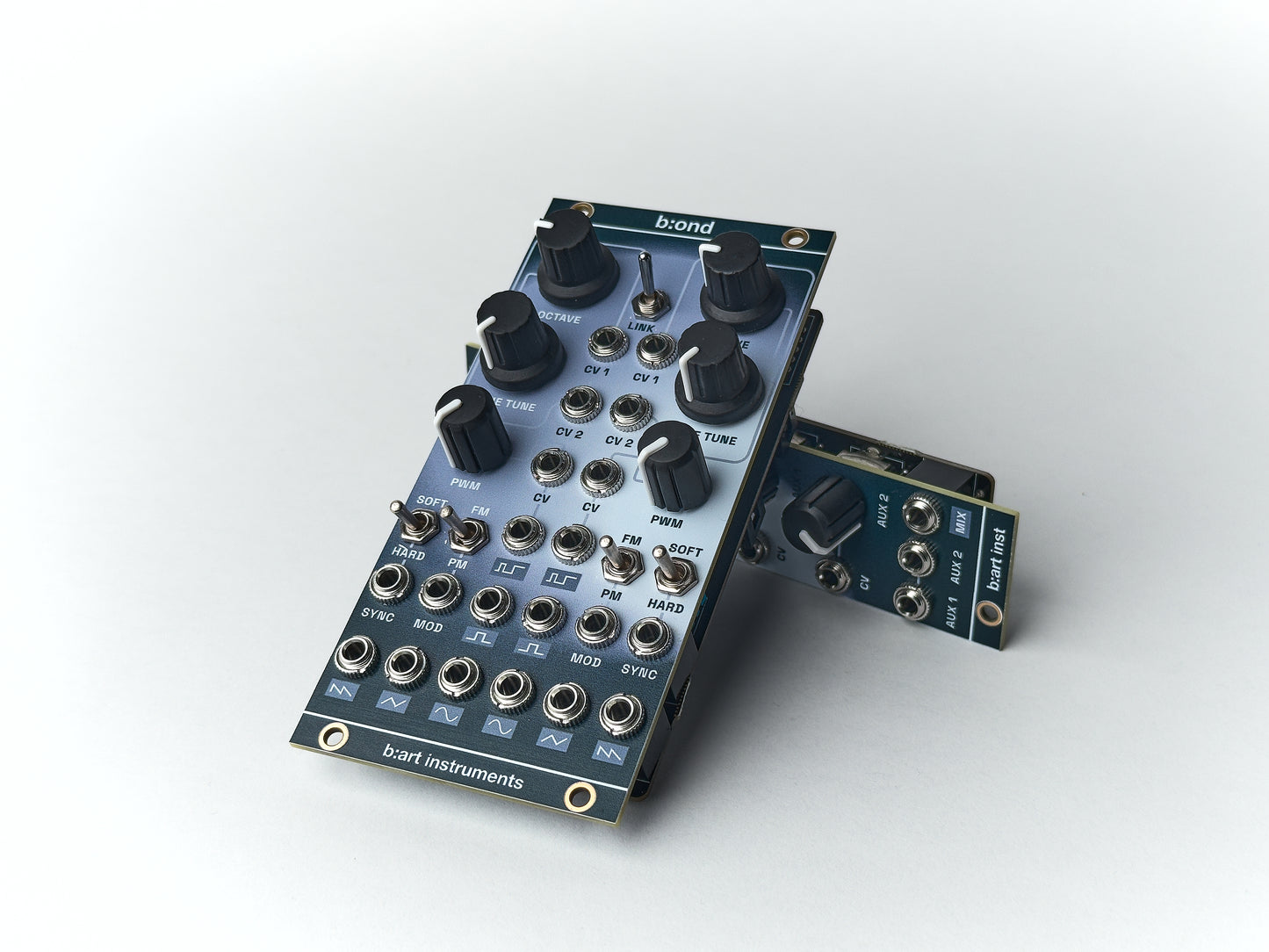

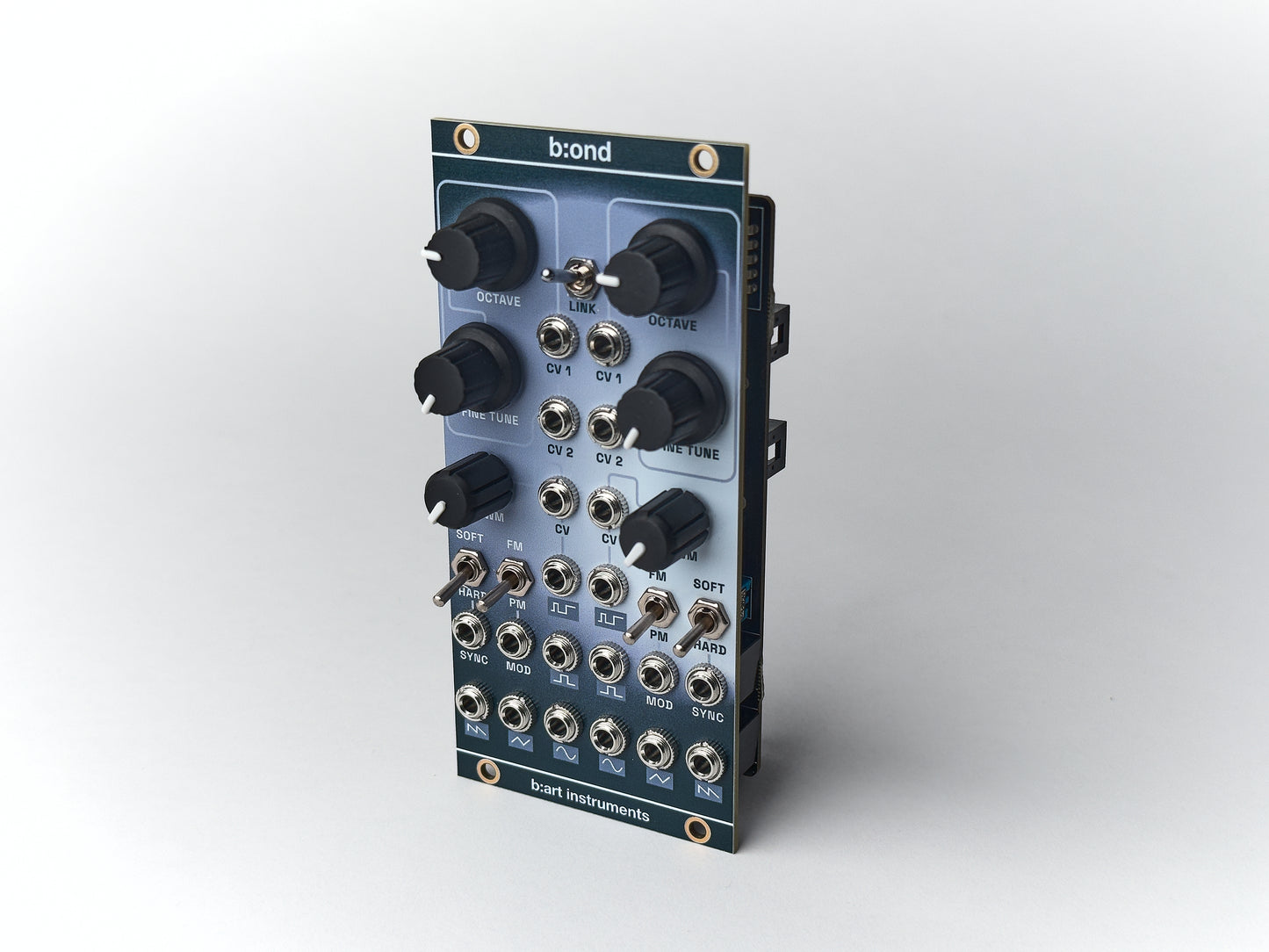

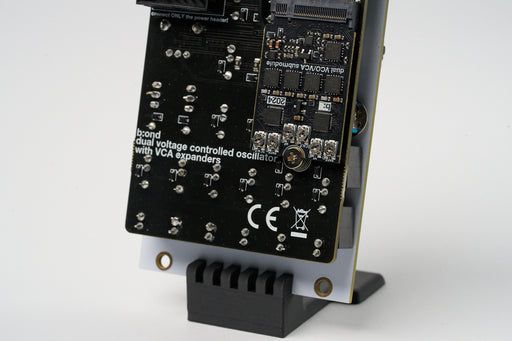

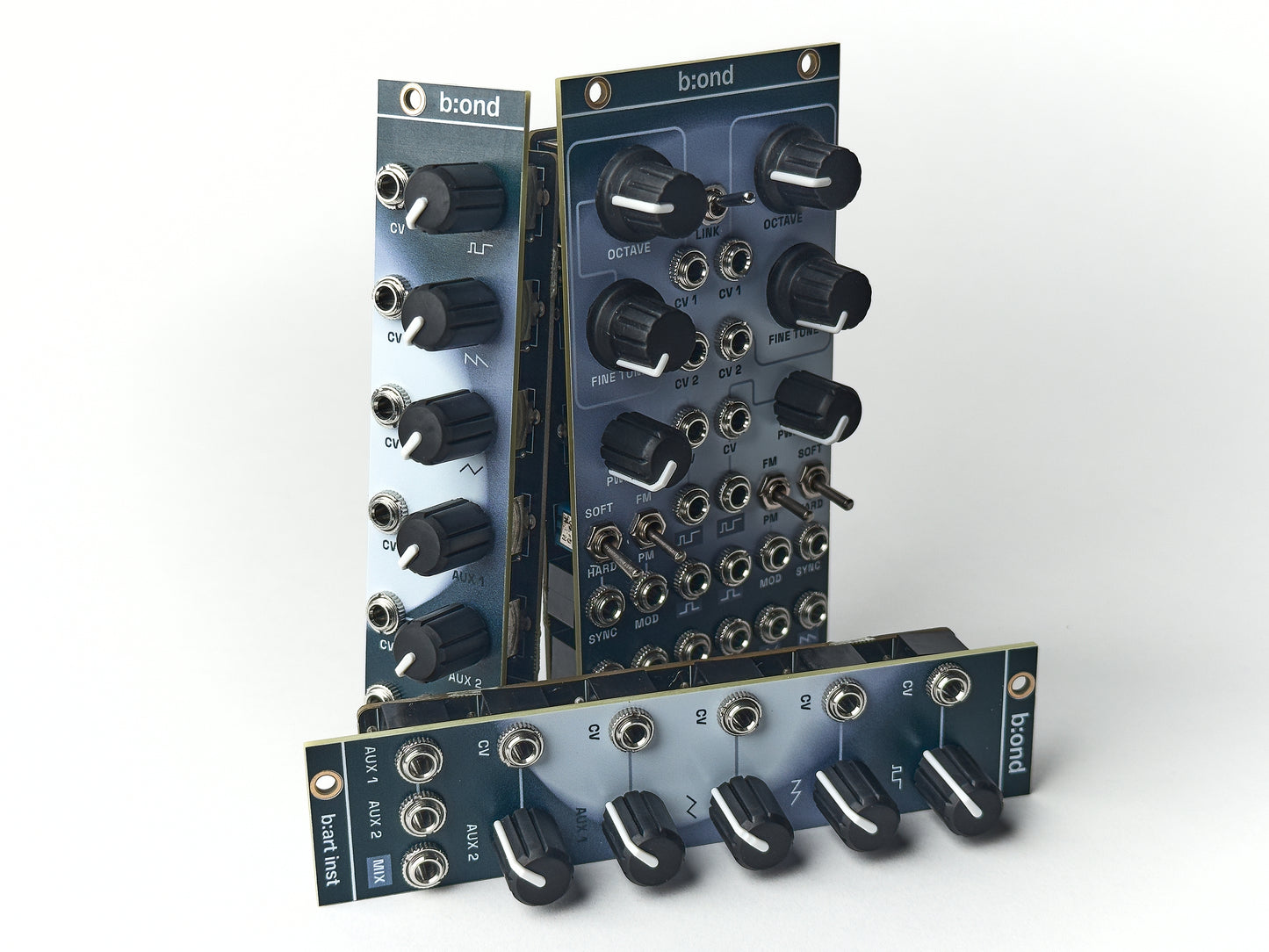

b:ond is a multi-purpose sound generator and processor Eurorack module. At its core, it comes with two high-quality analog voltage-controlled oscillators with through-zero FM and PM capabilities, providing rich and complex sound generation for your modular synthesizer setup.

 Get manual View full details


Last VCO you will ever need.



Fully Analog

The analog nature of the module ensures warmth, richness, and a natural character that digital oscillators often struggle to replicate

Industry-Leading Performance

Precision multipliers in the VCOs feature exceptional temperature compensation and ensure rock-solid tuning across ten octaves

Through-Zero Modulation

Designed for through-zero FM and PM, the oscillators invert phase and oscillate smoothly through zero frequency for unique, rich tones.

Main features

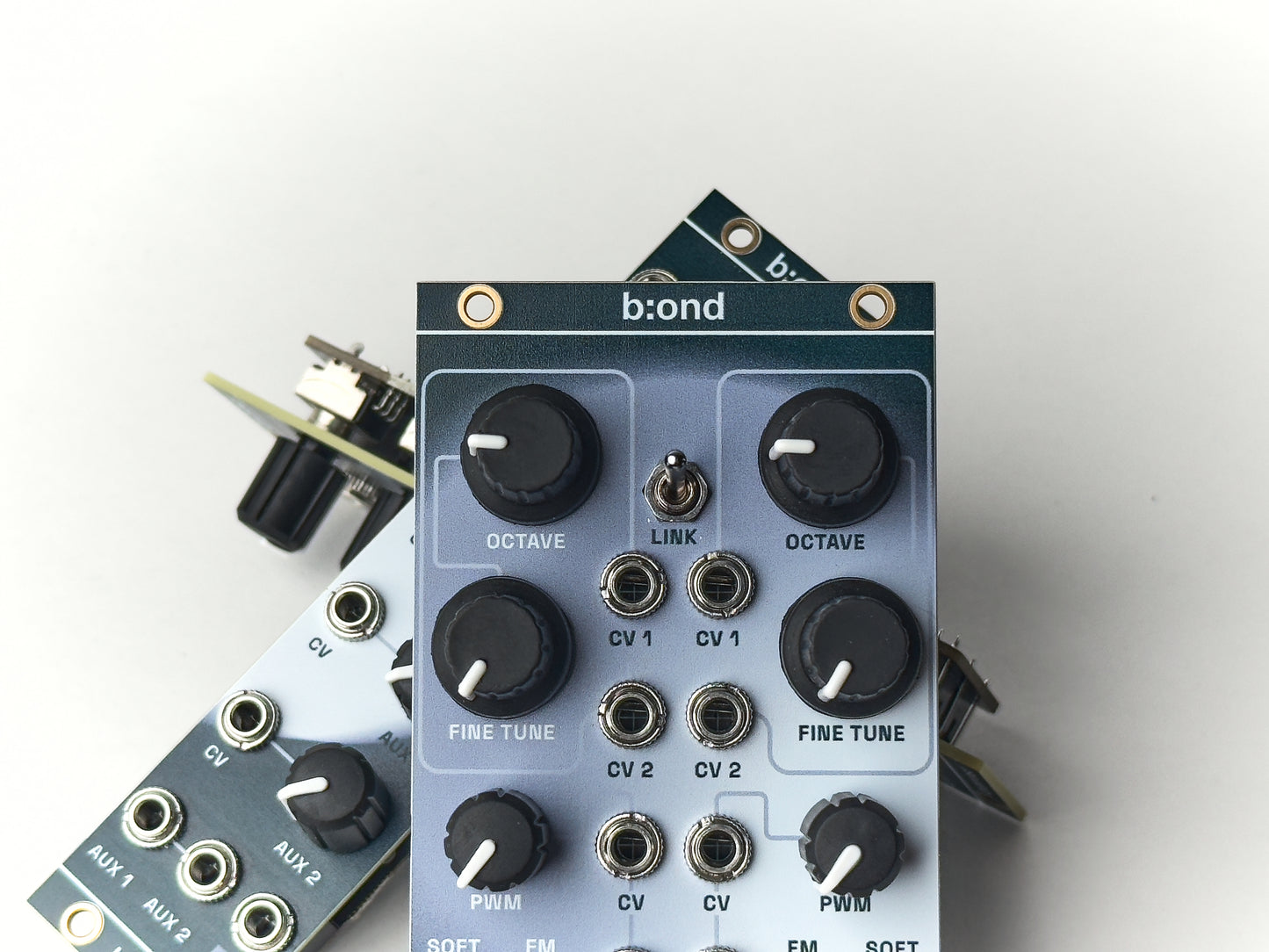

Unmatched precision Dedicated octave switch and Fine Tune knobs allow for precision tuning with only 2 cent error.

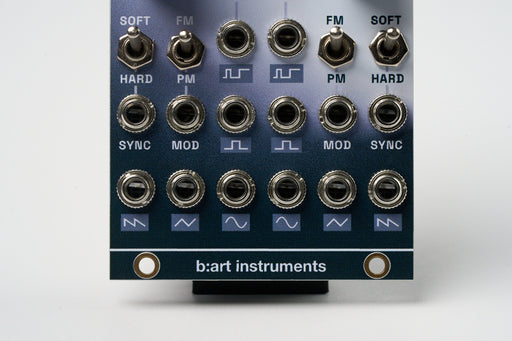

Flexible outputs Simultaneous SINE, SAW, TRIANGLE, SQUARE, and PULSE wave output options
Advanced sync options Selectable SOFT and HARD Sync inputs enable the creation of harmonically related waveforms and complex sounds

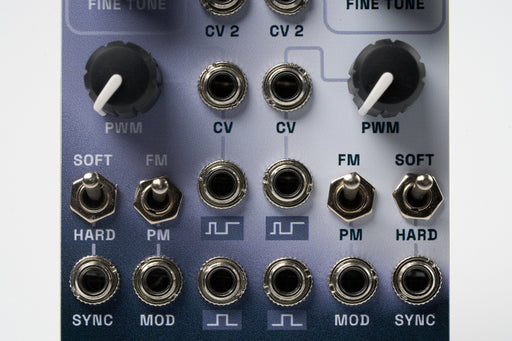

Pulse Width Modulation PWM knob and PWM CV input for dynamic pulse width control

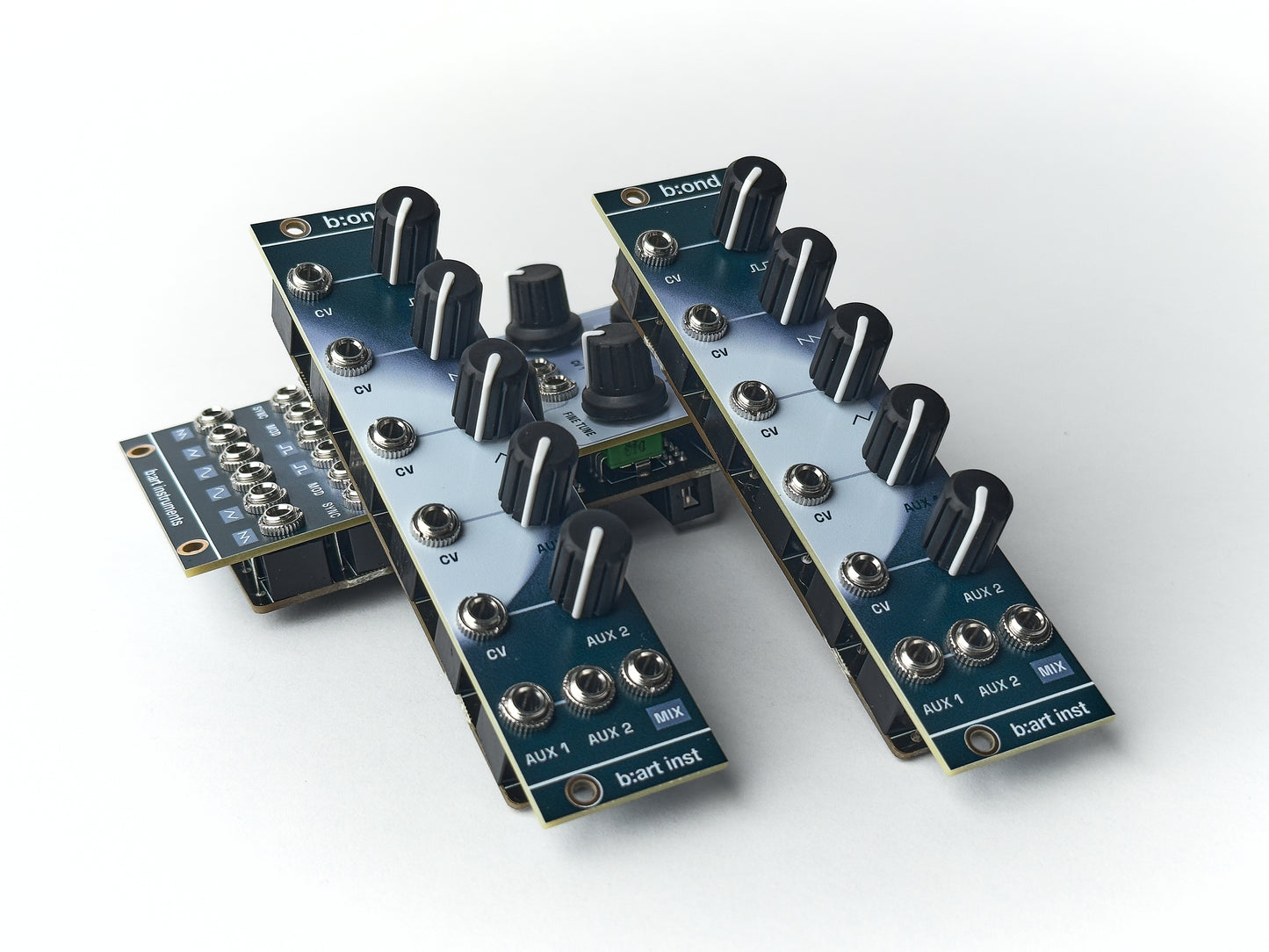

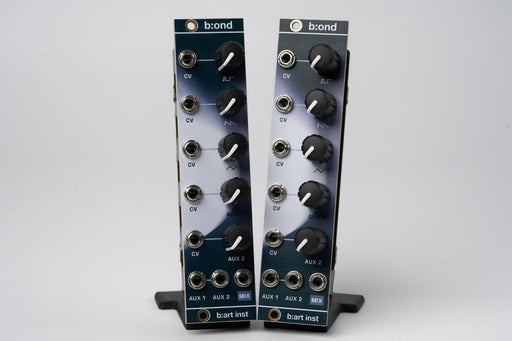

VCA expanders Two unique five-channel VCA expanders allow for seamless blending of multiple waveforms and modulation sources
Performance oriented Built for stage use with rubberised knobs, tested module layout and highly-readable font

Other features

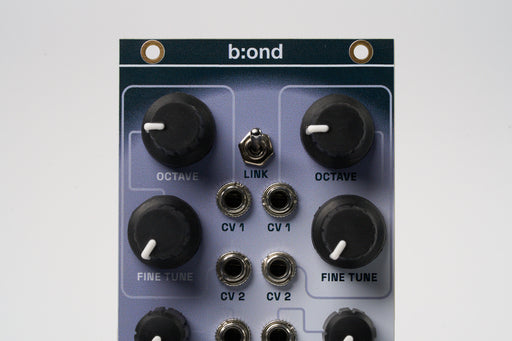

  • VCO Linking – A LINK Switch connects the second oscillator's octave switch and fine tune knob with the first for easy synchronised tuning adjustments
  • Accurate Waveforms – Low-noise, high-fidelity outputs ensure clear and accurate waveform reproduction

Product specifications

Power consumption +12V 74mA / -12V 67mA
Supply voltage +/-12V
Horizontal pitch 12HP + 2 * 6HP (VCA expanders)
Depth 17mm
