b:alance

NEW!

b:alance

1.169,00 zł
1.169,00 zł
Taxes included. Shipping calculated at checkout.

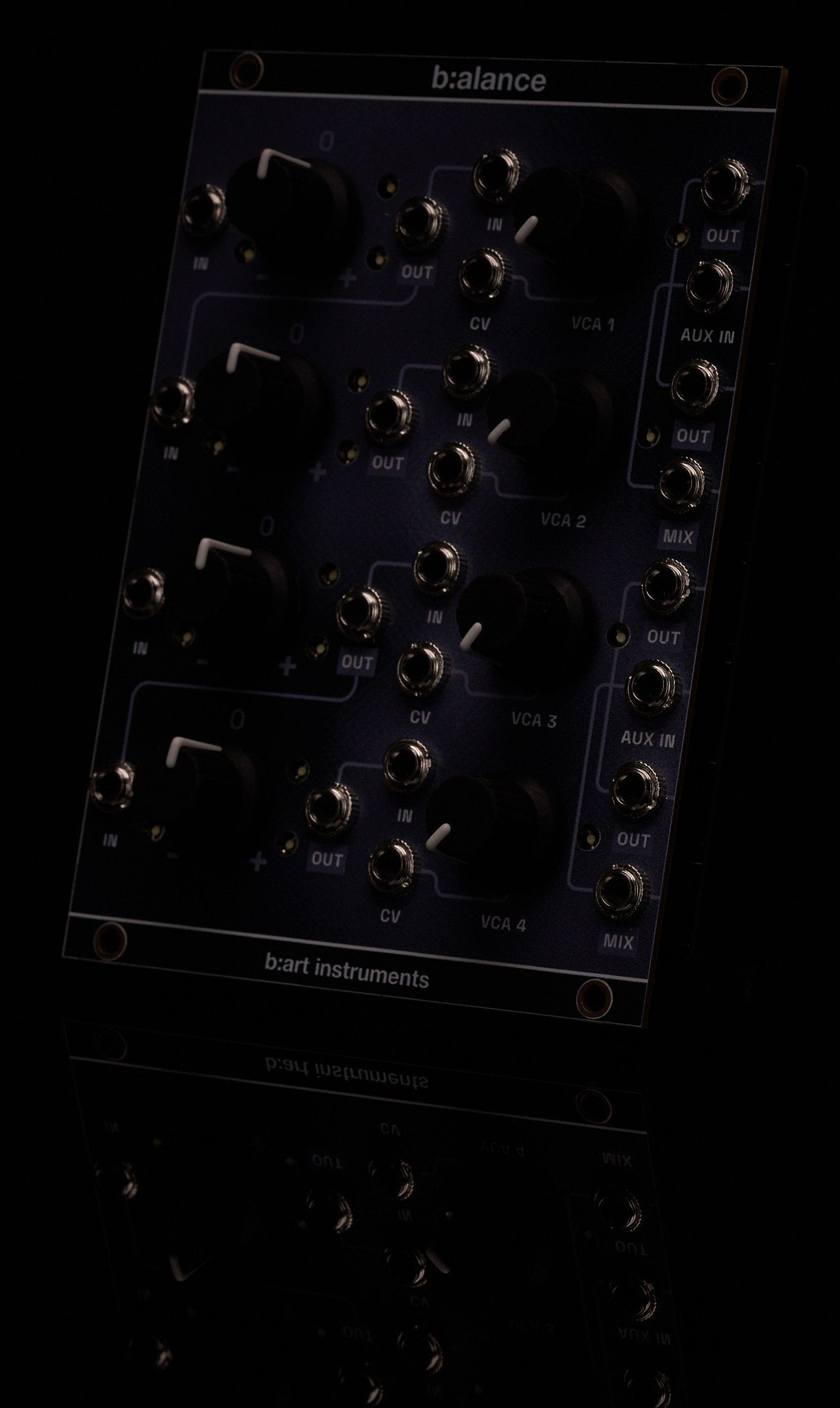

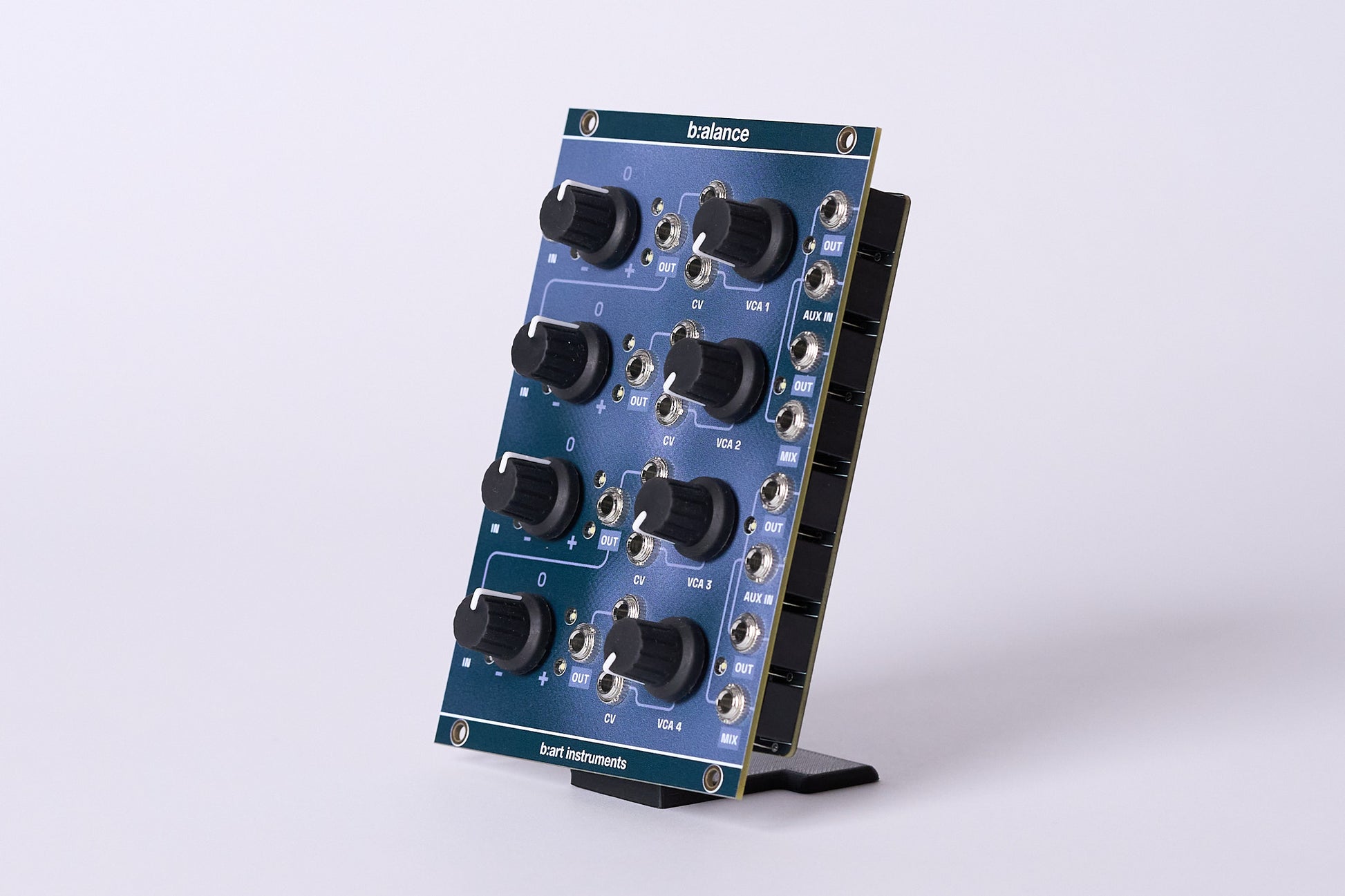

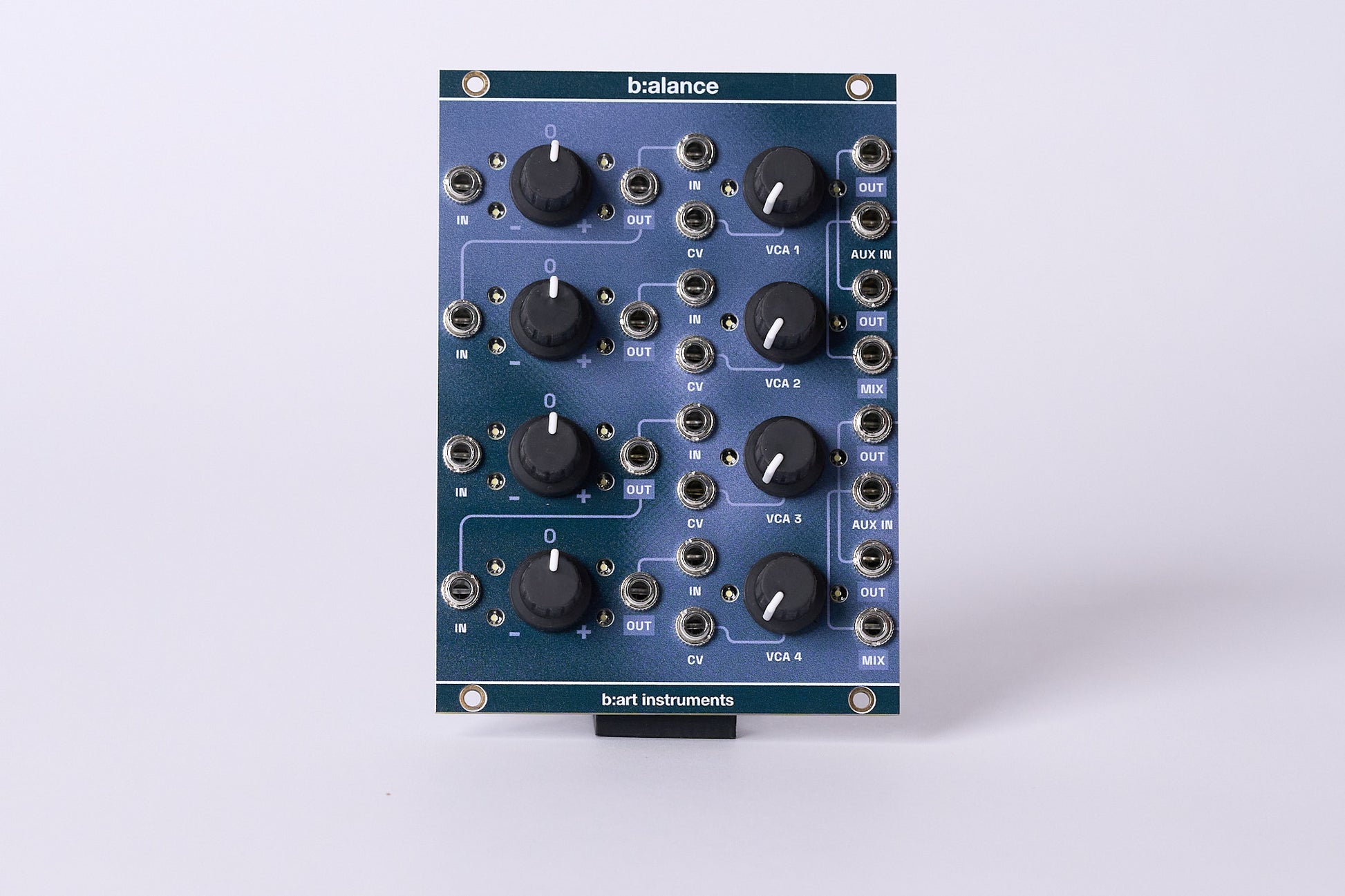

b:alance is a high-fidelity, quad attenuverter and VCA module with integrated mixing and sophisticated normalization. Designed for audio and CV alike, it offers complete control over signal amplitude, polarity, and routing, enabling subtle modulation shaping or full-on dynamic control.

 Get manual View full details


The heart of modulation. The soul of mixing.

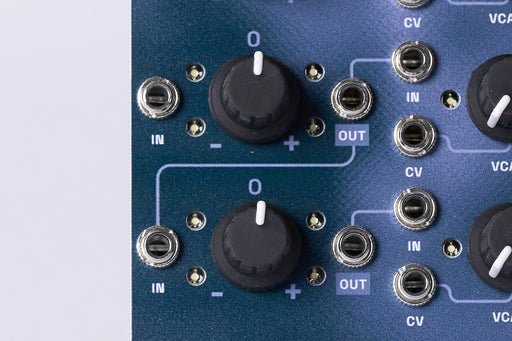

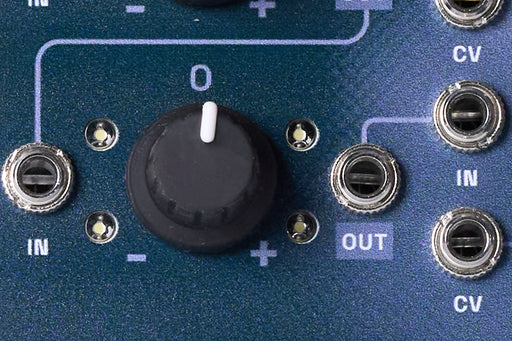

Attenuate, Invert, and Visualize

Four attenuverters with center detent knobs, input/output LEDs, and normalization for quick CV/audio shaping

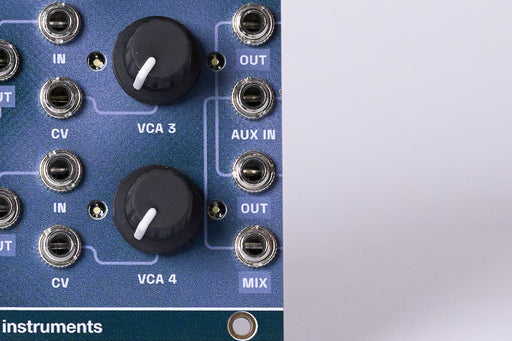

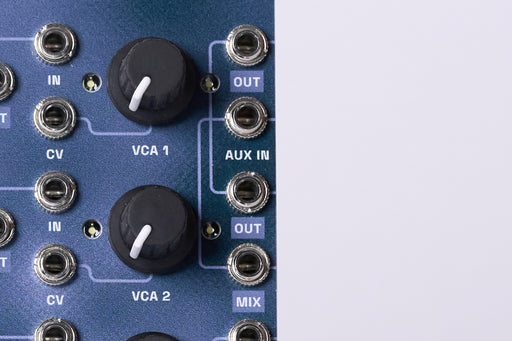

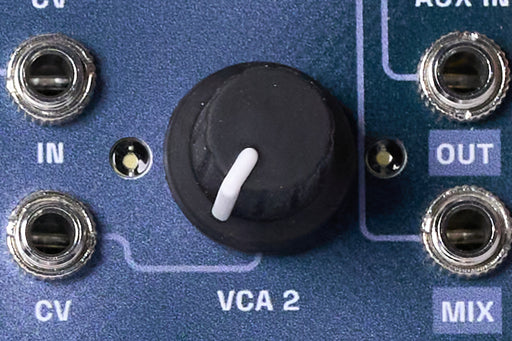

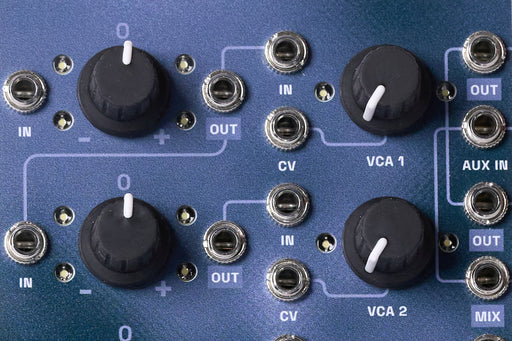

Shape Volume with VCAs

DC-coupled VCAs with manual gain, CV control, level LEDs, and chained modulation inputs

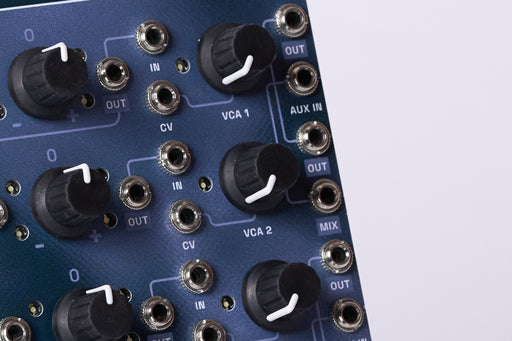

Mix and Route with Ease

Built-in mixers with aux inputs and flexible normalization streamline patching and signal flow

Main features

Four Attenuverters Scale and invert CV or audio with precision control from -100% to +100%
Center-Detent Knobs Quickly find exact zero when shaping signals with tactile center click
Input & Output LEDs Visualize signal activity and levels for every attenuverter channel
Normalled Inputs AV2 is normalled to AV1; AV4 to AV3 for fast signal routing
Four VCAs Control amplitude of any signal manually or with CV.
Chained CV Normalization One CV input can control multiple VCAs - patched inputs break the chain
Gain Level LEDs Monitor CV modulation and VCA response in real time

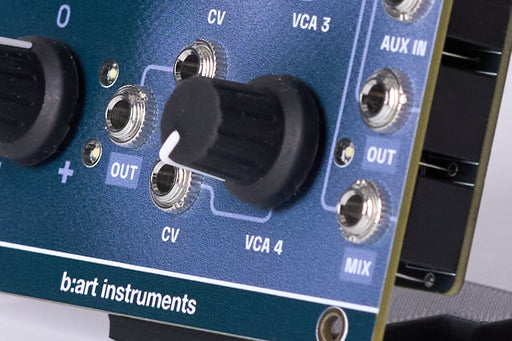

Integrated Mix Outputs Each VCA pair features a dedicated output that sums both VCAs and aux input
Aux Inputs per Mixer Add a third signal to each VCA submixer for additional flexibility
Audio & CV Compatible All sections accept modulation or audio signals with equal performance
Flexible Routing Patch internally or override with cables - normalizations adapt instantly

Product specifications

Power consumption +12V 86mA / -12V 80mA
Supply voltage +/-12V
Horizontal pitch 18HP

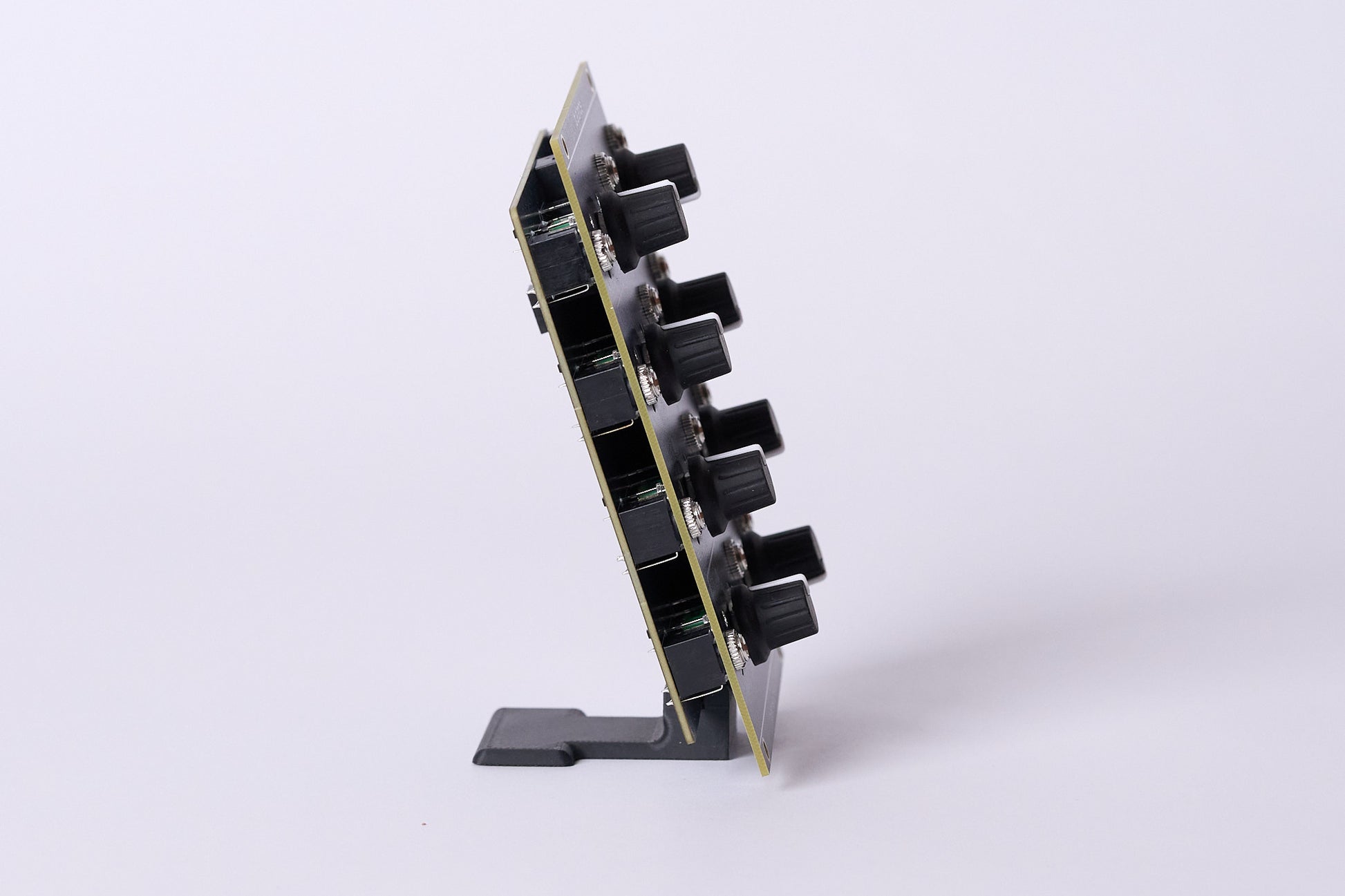

Depth 17mm
